Hi all,
I am trying to create a custom model pattern which can be used on floors, etc.

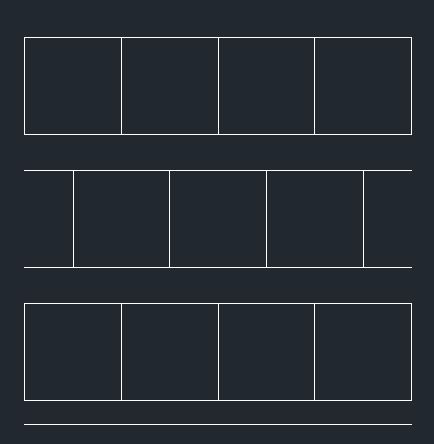

Refer to screen shot for how i want it to look. Squares are 400mm by 400mm, with a 150 strip between, then the next row of squares are offset to align with the centre line of the square above.
I have tried editing the .pat file and reimporting it. While i can get the file into revit, i just cant get it to look like the screen shot.
Lines are going everywhere, except where i want them!
If anyone could help with creating a quick file for me, or pointing out the settings i need, it would be much appreciated.
Cheers,
K
|
This user is offline |
|
 | |
|
|
active
Joined: Fri, Sep 3, 2010
0 Posts
 |
Can you upload your pat file?
|
This user is offline |
|
|
|
active
Joined: Thu, Sep 27, 2012
0 Posts
No Rating |
Sorry, i lost my patience with it and deleted it!
If i get a chance, i will try and write a new one.
|
This user is offline |
|
|
|
active
Joined: Fri, Sep 3, 2010
0 Posts
|
I asked for the file, because it's easier to modify existing rather than start from scratch, …anyway, enjoy.
;%UNITS=MM
*name
;%TYPE=MODEL
0, 0,0, 0,550
0, 0,400, 0,550
90, 0,0, 0,400, 400,-700
90, 200,550, 0,400, 400,-700
Edited on: Wed, Jan 28, 2015 at 10:15:06 AM
|
This user is offline |
|
|
|
active
Joined: Thu, Sep 27, 2012
0 Posts
No Rating |

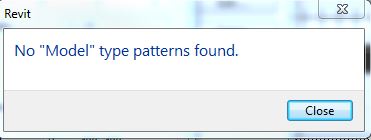

Thank you pijpiwo for creating that file, however, it does not import. i am getting the "No model type patterns found" error message.
Attached is the exact file i am trying to import, with name added, as per your original coding.
|
This user is offline |
|
|
|
active
Joined: Sun, Oct 7, 2012
0 Posts
No Rating |
a
|
This user is offline |
|
|
|
active
Joined: Fri, Sep 3, 2010
0 Posts
|
Hmmm..., I'm not sure why it's not working for you, but try this pat file.
Edited on: Wed, Jan 28, 2015 at 10:27:17 PM
|
This user is offline |
|
|
|
active
Joined: Thu, Sep 27, 2012
0 Posts
No Rating |
That file worked a treat.
Thank you so much for your help. Much appreciated pijpiwo.
|
