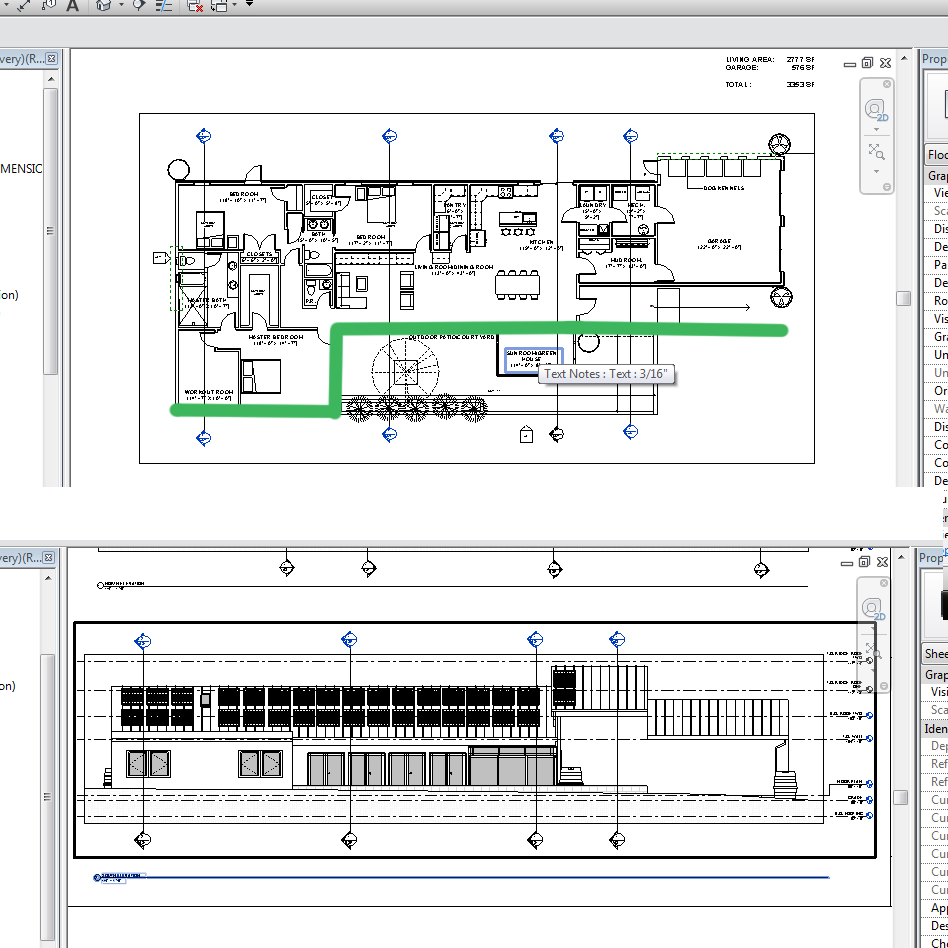

1. "Plan Region Equivalent" (See Photo)

- I would like to step back part of this elevation line...to only show the elevation of the building. Presently the line is beyond the exterior retaining wall (which includes a building wall). I would like to include the wall that has the sliding glass windows, as well as the wall that "juts out." Is it possible to step back the elevation line? or am I cursed to make two elevations and line-them-up. The thought of that makes me squemish.

Note: The greenline represents how I would like to show the elevation.

2. "Underlay Equivalent" (No Attached Photo)

- I presently have a roofline that is higher than the visible roofline. However, it is not in the section view. It is behind the view. Is there a way to underlay the view so I may provide a <Hidden> line-style to the roof outline?

Cheers,Dave

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Do you want a split elevation segment?  Click on the elevation cut line and pick that option from the task bar.

This user is offline

ddfrazee

active

Joined: Thu, Aug 20, 2009
6 Posts
No Rating

WWHub: I was hoping to do a "step" in the elevation...from what it sounds like...you're directing me to do a Vertical View Break in the elevation? I imagine then I would have to do a second elevation, and move the line of that elevation in plan back towards the building correct?

This user is offline

ddfrazee

active

Joined: Thu, Aug 20, 2009
6 Posts
No Rating

It doesn't look like I can do what I need to do in 2013

http://ideatesolutions.blogspot.com/2013/04/new-elevation-line-functionality-in.html

Any advise on my Second questions?

This user is offline

ddfrazee

active

Joined: Thu, Aug 20, 2009
6 Posts
No Rating

It doesn't look like I can do what I need to do in 2013

http://ideatesolutions.blogspot.com/2013/04/new-elevation-line-functionality-in.html

Any advise on my Second questions?

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Split elevation in 2013.... Use a section. that will split in 2013.  Hide the section marker and set an elevation that references other view and pick the section.

Second question: set your view to wireframe and will the hidden line style work now.  Obviously, set the view back to hidden line.
