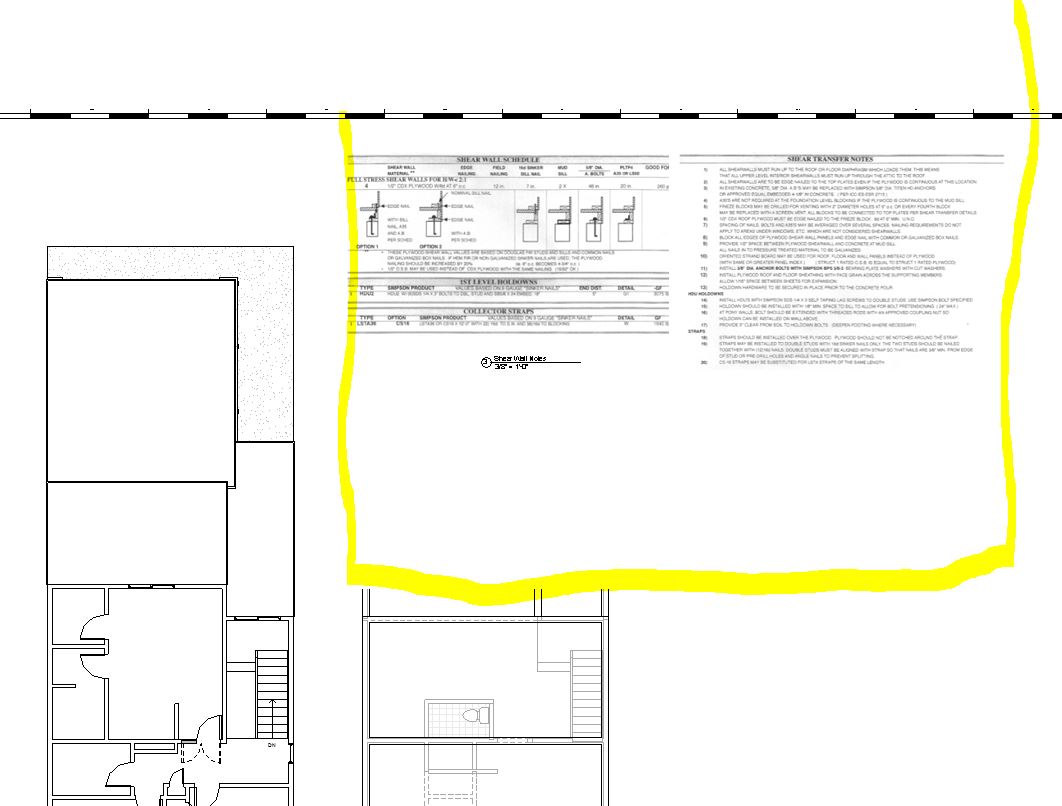

how do you get the drafted view (which contains some raster images in my screen shot)  to not cover over my plan view. I guess I want to be able to crop the drafted view...but there is no crop tool at the bottom controls.

thanks Michael!

Attached Images

This user is offline

View Website

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

You should not place CAD or images in a view that can't be cropped unless they are already cropped.

Use a legend view because that can be cropped.
