Hi guys,

Pretty new to Revit having used AutoCAD for many years and although initial frustrations with the change over, I must say, I am loving what Revit has to offer and the ability it has, not only to create, but allow you to better understand a building.

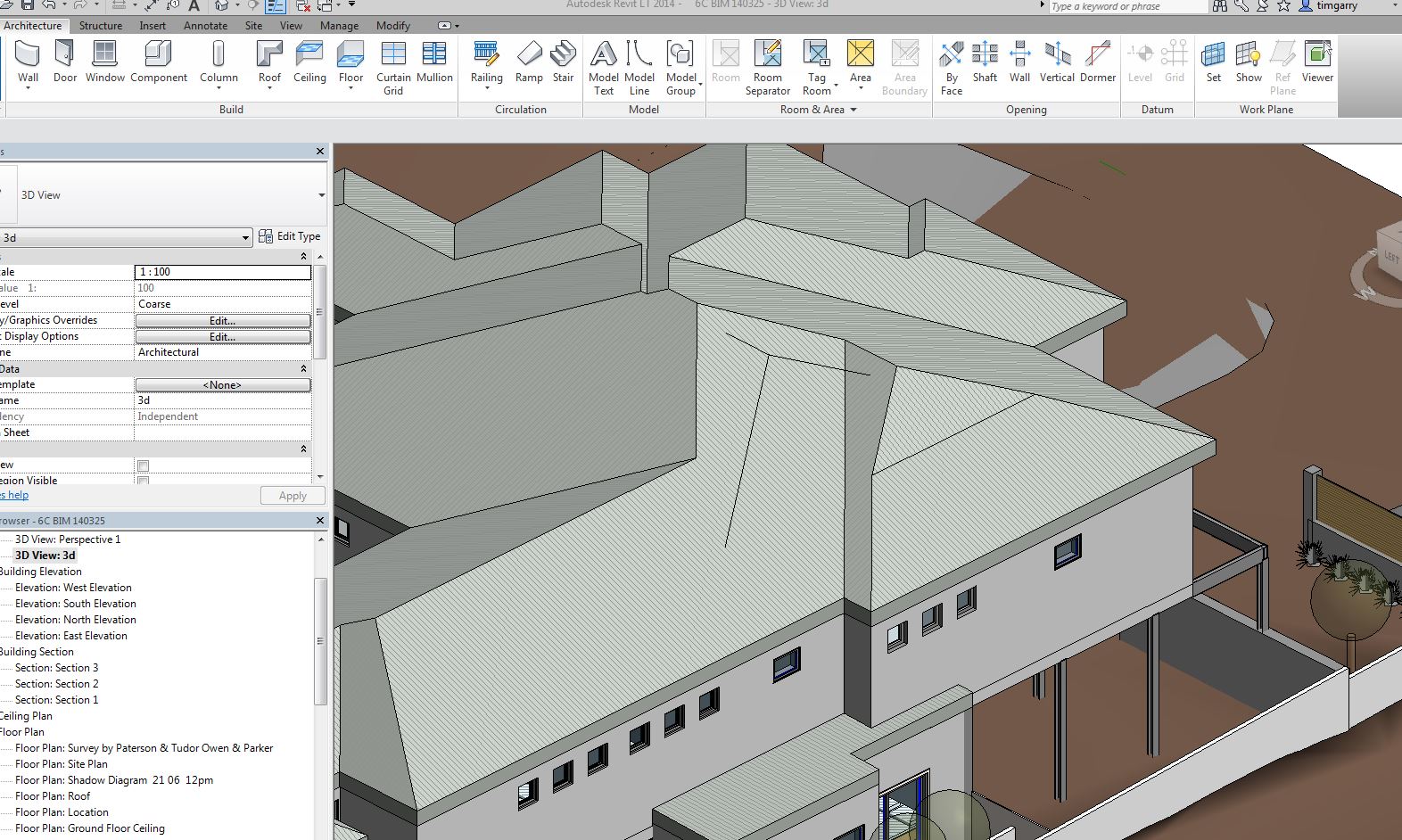

Anyway, I have abit of a problem with a roof. I have a height restriction on the site, so having created the multiple hipped roof I specified the pitch at 22 degrees which was accepted. However it seems very odd at this portion (image attached) Any advice would be hugley appreciated.

Cheers guys,

Tim

Attached Images

This user is offline

teafoe5

site moderator|||

Joined: Fri, Nov 12, 2010
1749 Posts

Your image doesn't tell us much, can you circle or point to the area you are having problems with and explain what you think is incorrect

This user is offline

View Website

jaanso

active

Joined: Tue, Feb 19, 2013
0 Posts
No Rating

Hi, I"m looking to create a roof that opens in all direction. but don't know how to get them to join without the blockade of opposite views. please help...

Attached Images

This user is offline

teafoe5

site moderator|||

Joined: Fri, Nov 12, 2010
1749 Posts

jaanso please create your own thread for this question and explain what you are trying to do, your question is unclear.

This user is offline

View Website

jaanso

active

Joined: Tue, Feb 19, 2013
0 Posts
No Rating

if you look at the picture, I'm trying to create a roof that has both east-west wing and north-south wings. but if I use the roof by extrusion then the wings are cut off. how can I make sure that doesn't happen

Attached Images

This user is offline

DougPinkatdbm

active

Joined: Sat, Mar 24, 2012
0 Posts
No Rating

Being a newbie somewhat myself it looks to me you need to create an opening in the lower roof.

My best guess, hope it helps

This user is offline

View Website

TimGarry

active

Joined: Sun, Mar 9, 2014
0 Posts
No Rating

Thanks guys,

My error as I had one element of the roof at a different pitch.. It seems when returning to amend a roof in plan, you must be careful as the previous pitch defaults back to 30 degrees... My fault for not checking though!

Thanks agin

This user is offline

Jrinko42

active

Joined: Wed, Mar 26, 2014
0 Posts
No Rating

I agree
