Hi there,
I'm designing a couple of furniture ranges in Revit 2014.
I was wondering how I would go about creating instances with drawers/doors open and closed, so far I've had to
create separate families. I have a basic understanding of how to create instances, but not had any luck with this.

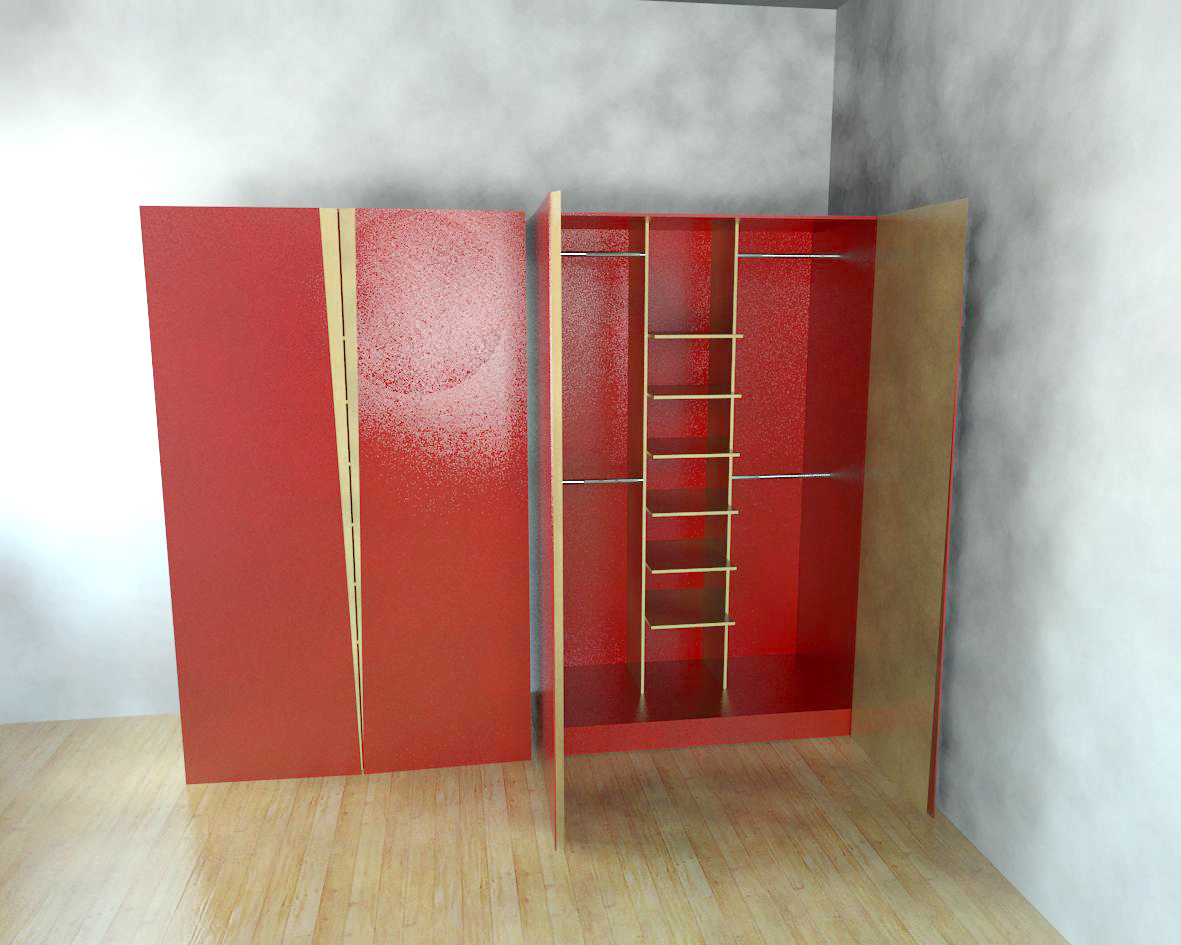

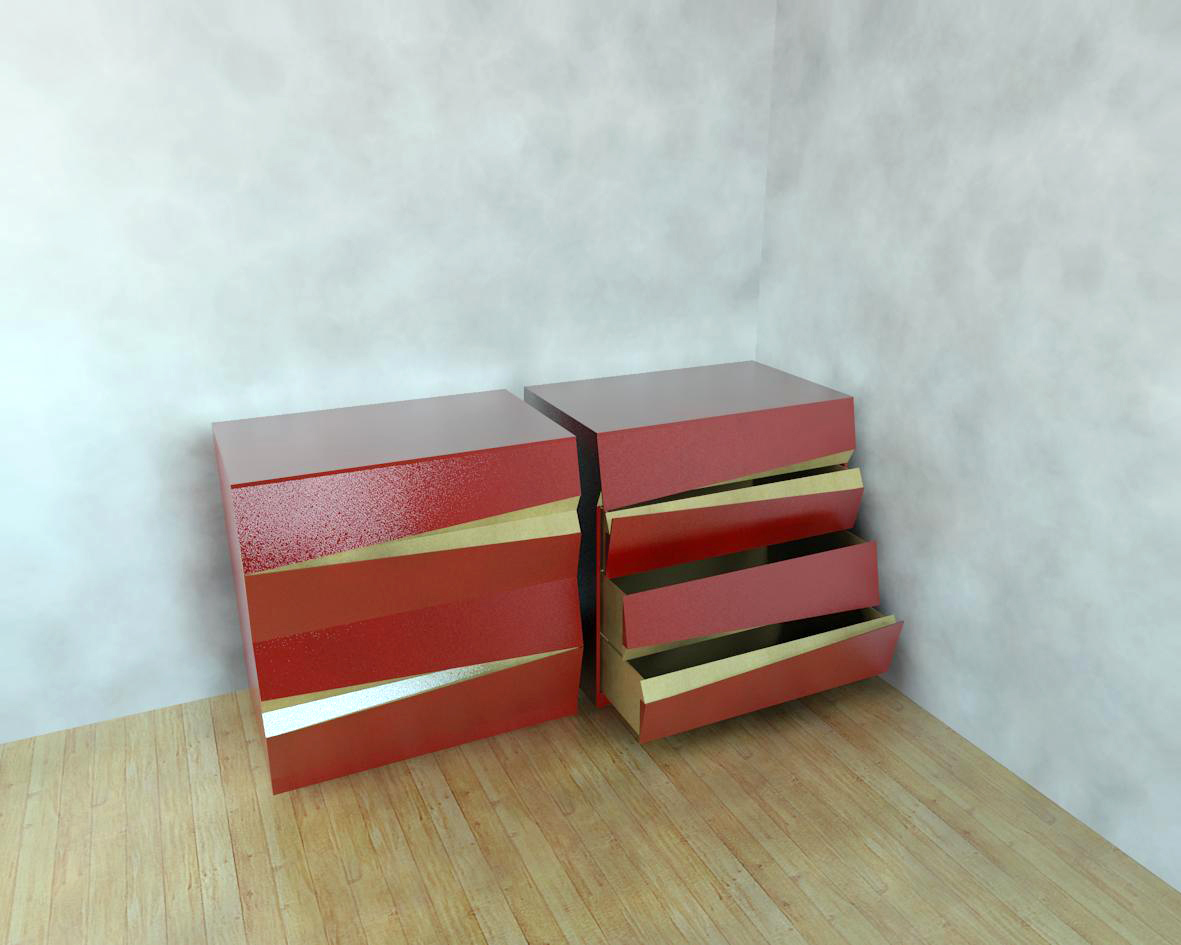

See the attached image for an example
Cheers
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
You can have two different solids in your family for your doors - one open, one closed - then you set visibility of those based on a new parameter that you create.
|
This user is offline |
|
|
active
Joined: Mon, May 3, 2004
10 Posts
|
so for the drawers I'd just alternate the visibility settings? or would I be able to make a 'placement' parameter? or just simply create a new instance and move the elements?
|
This user is offline |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
The visibility setting can be a type based or instance based parameter. The controlling parameter might be a T/F parameter like OPEN and the visibility setting can be an IF....
Search the forums for similar threads. Also download the families guide from the autodesk site.
|
