Forums >> Revit Building >> Technical Support >> Intersecting shapes in Wall edit profile (revit 2012)

hashstrid

active

Joined: Mon, Oct 10, 2011
1 Posts
No Rating

Hi all,Im trying to make create 2 intersecting squares in my wall, however i cant seem to acheive this in edit profile.

The photo i have attached is what im trying to achieve. Can anyone help me please

Attached Images

This user is offline

ronmalit

active

Joined: Thu, Mar 29, 2012
113 Posts

HI

it looks like a bed headboard/header and it should be done in family editor. and use two solid extrusion to achieve this.

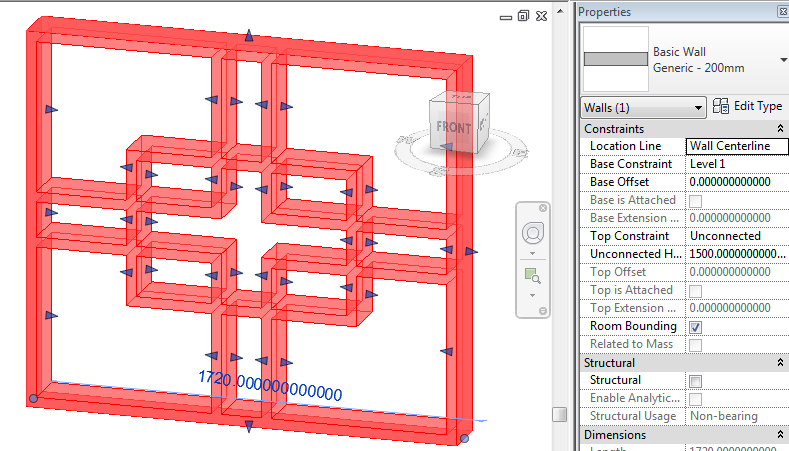

but still, if you want to use a wall:

-in your sketch, just draw the outlines.. and dont intersect lines.

-you can just create a jpg file of it and map it for the appearance and cut-out.

Attached Images

-----------------------------------

** dont be mad, i dont have much... i am homeless
