Forums >> Revit Building >> Technical Support >> Elevation View
|
|
|
active
Joined: Thu, Jun 20, 2013
5 Posts
No Rating |

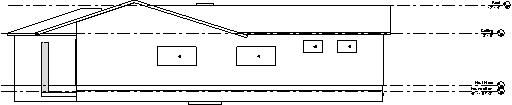

Windows in elevation are not showing detail only an arrow indicting slide direction. I've spent hours trying to solve this this. Attached an image
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |
Change the view to "fine mode", if this not work you'll have to edit that window family and add the detail you want.
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Make sure your view depth includes the whole window.
|
This user is offline |
|
|
|
active
Joined: Thu, Jun 20, 2013
5 Posts
No Rating |
Thank you so much - I was able to control it in the family editor under visibility settings.
|
