Forums >> Revit Building >> Technical Support >> Advance users please help! how to create a braid-like structure

annateo301

active

Joined: Tue, Aug 4, 2009
70 Posts
No Rating

Hi there,

I dont knw whether Revit can do a model that looks like a braided rope but hollow inside, which runs along a pathway.. Anyone?? Please help.. This is a project for my uni..Due date is soon!!

Would be much appreciated...

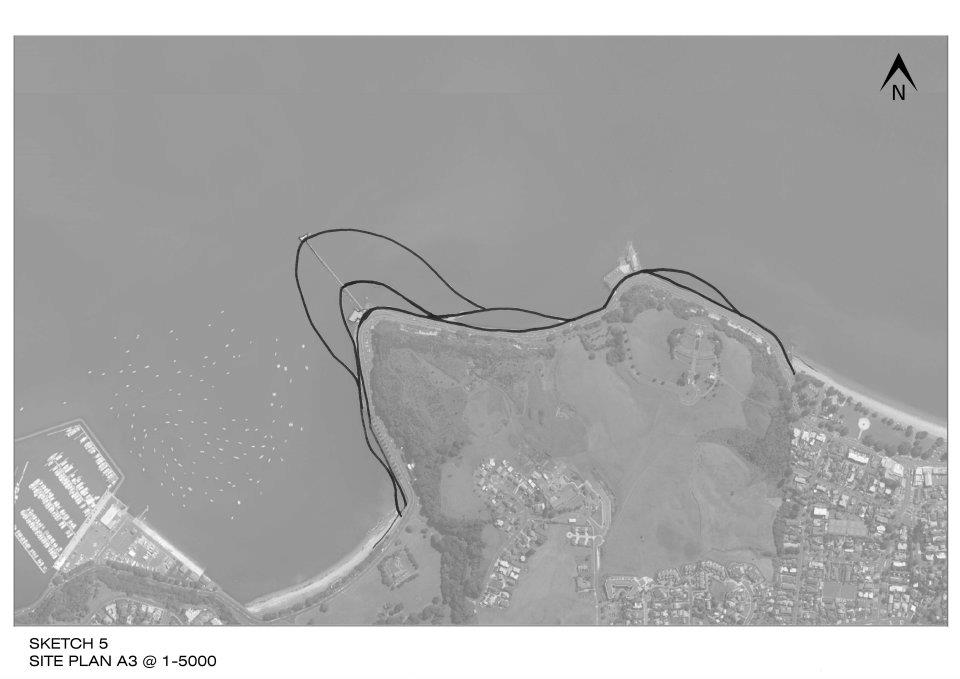

ps: see attached file for the pathway that i designed and the look of the structure.

Attached Images

This user is offline

teafoe5

site moderator|||

Joined: Fri, Nov 12, 2010
1749 Posts

Yes something like that can be created using a mass.

This user is offline

View Website

annateo301

active

Joined: Tue, Aug 4, 2009
70 Posts
No Rating

any tips how to create this??

This user is offline

alabaster2513

active

Joined: Tue, Jan 16, 2007
1009 Posts

extrude a circle then use a series of voids to cut out the geomtry

This user is offline

View Website

annateo301

active

Joined: Tue, Aug 4, 2009
70 Posts
No Rating

can 'extrude' be used to create horizontal pathway?? and what do u mean by using a series of voids to cut the geometry?

This user is offline

vicozzio

active

Joined: Wed, May 14, 2008
55 Posts
No Rating

for your question: "can 'extrude' be used to create horizontal pathway??"

Let me add to alabaster2513 answer.. extrude a solid using sweep in Revit.. then you will be able to extrude using a path.. The concept I think is just like extrude by path in AutoCAD..

for your question: " and what do u mean by using a series of voids to cut the geometry?"

Again, let me try to add alabaster2513 answer.. after you create the circle solid by path, you will have a tube right? then you need to make holes in the center of that tube (so it will become a pathway) and then you have to make a lot of holes to make the tube just like a braided rope the way you want it...

I'm not an expert in Revit, but I can say.. it would be quite difficult..

For object like this, I usually use other 3D software that could create more organic shape, and then export it to DWG.. but the downside of this way is that this model will not editable in Revit..

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

http://www.youtube.com/watch?v=8XNnlx1yhbg   << Your answer is in this video

This user is offline
