Sun, Apr 8, 2012 at 11:41:19 PM | Dome roof?

#1

tavisc


active

Joined: Fri, Apr 6, 2012
6 Posts
No Rating




Hi everyone. I'm working on a couple designs for my architecture portfolio. I'm hoping to go to grad school for Architecture, so I need one. Anyways, here's my problem. I've got a basically square house started. The outside walls are 10’, and I have a 10’ shaft centered which is 8’ tall. I’d like my roof to slope from the outside walls down to the shaft, with a cutout in the middle, but I can’t get the roofing tool to play nicely. I want it to be nice and curve, and not divided into segments-sort of a dome roof in reverse. I also tried to model a component in place, but that didn’t work out too well. Any ideas?



Attached Images


This user is offline



Mon, Apr 9, 2012 at 2:50:36 PM | Dome roof?

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4 Stars: 26 Votes


I think using a sweep would work out if I understand what your trying to accomplish.  A section or elevation would be helpful.


This user is offline

View Website

Mon, Apr 9, 2012 at 5:26:53 PM | Dome roof?

#3

tavisc


active

Joined: Fri, Apr 6, 2012
6 Posts
No Rating


I'll try to get a section/elevation up today. I tried doing one last night but I couldn't get it to work. I'm not sure if it was me being tired or not, but I couldn't get it to work. I guess the best way to describe what I'm trying to do would be to imagine a funnel with a very slight slope to it, maybe 1"/12", if that helps.


This user is offline



Mon, Apr 9, 2012 at 6:02:50 PM | Dome roof?

#4

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4 Stars: 26 Votes


Something like this?



Attached Files

This user is offline

View Website

Mon, Apr 9, 2012 at 6:32:49 PM | Dome roof?

#5

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 155 Votes

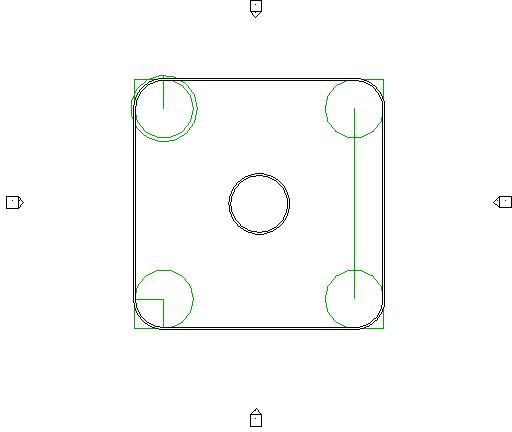

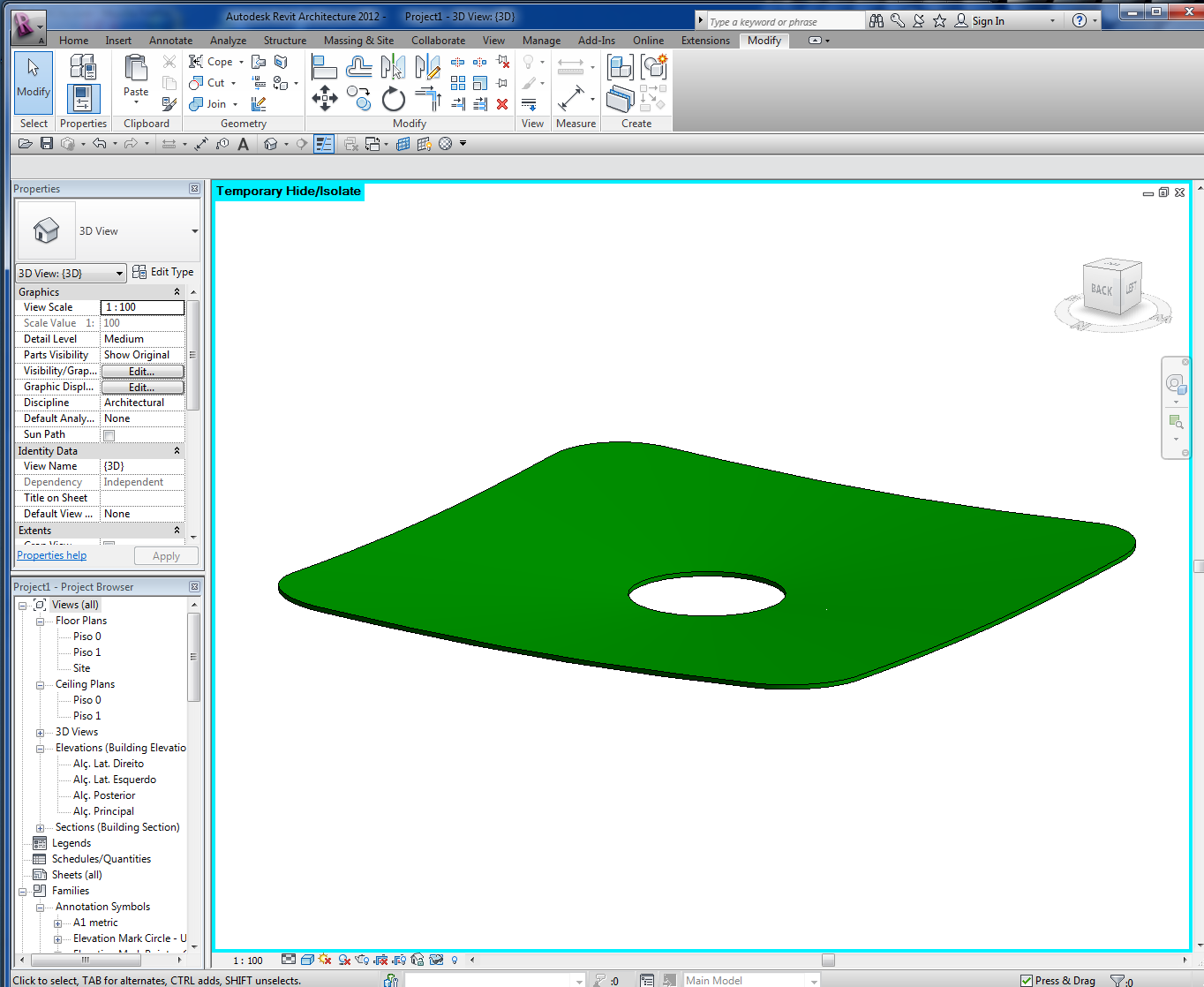

Something like this? -------> CONCEPTUAL MASS





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Apr 9, 2012 at 6:39:38 PM | Dome roof?

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 155 Votes


Or MODEL IN-PLACE



Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Apr 9, 2012 at 7:10:38 PM | Dome roof?

#7

tavisc


active

Joined: Fri, Apr 6, 2012
6 Posts
No Rating


Yeah, thats pretty much exactly what I want.


This user is offline



Mon, Apr 9, 2012 at 7:46:30 PM | Dome roof?

#8

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4 Stars: 26 Votes


I created mine using the MODEL IN-PLACE approach and creating a sweep.  It would be a preference as to how you want to do it as far as conceptual mass vs model in-place.


This user is offline
