Forums >> Revit Structure >> Technical Support >> roof and floor adge angles
|
|
|
active
Joined: Fri, Oct 2, 2009
140 Posts
 |
I need edge angles for my second floor and for my roof.
How do I do this?
I tried placeing them at my canopy roof and they keep putting them in upside down. I tried rotating them and mirroring them and it doesn't work.
Why is everything such a struggle to figure out in Revit? (getting very tired of this Revit thing!)
-----------------------------------
Yeesh - Where is My Cad
Yeesh - Where is My Cad |
This user is offline |
|
 | |
|
|
active
Joined: Tue, Sep 12, 2006
56 Posts
 |
Some images/sketches/pics would be helpful in understanding what you are trying to say. You've written the problen as if we are sitting next to you and know exactly what you are doing.
-----------------------------------
www.aspectarch.com |
This user is offline |
View Website
|
|
|
active
Joined: Thu, Mar 17, 2005
1231 Posts
 |
Sounds like this could be dealt with using an In-Place family with a solid / void sweep ?
-----------------------------------
.
FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150
|
This user is offline |
View Website
|
|
|
active
Joined: Fri, Oct 2, 2009
140 Posts
|

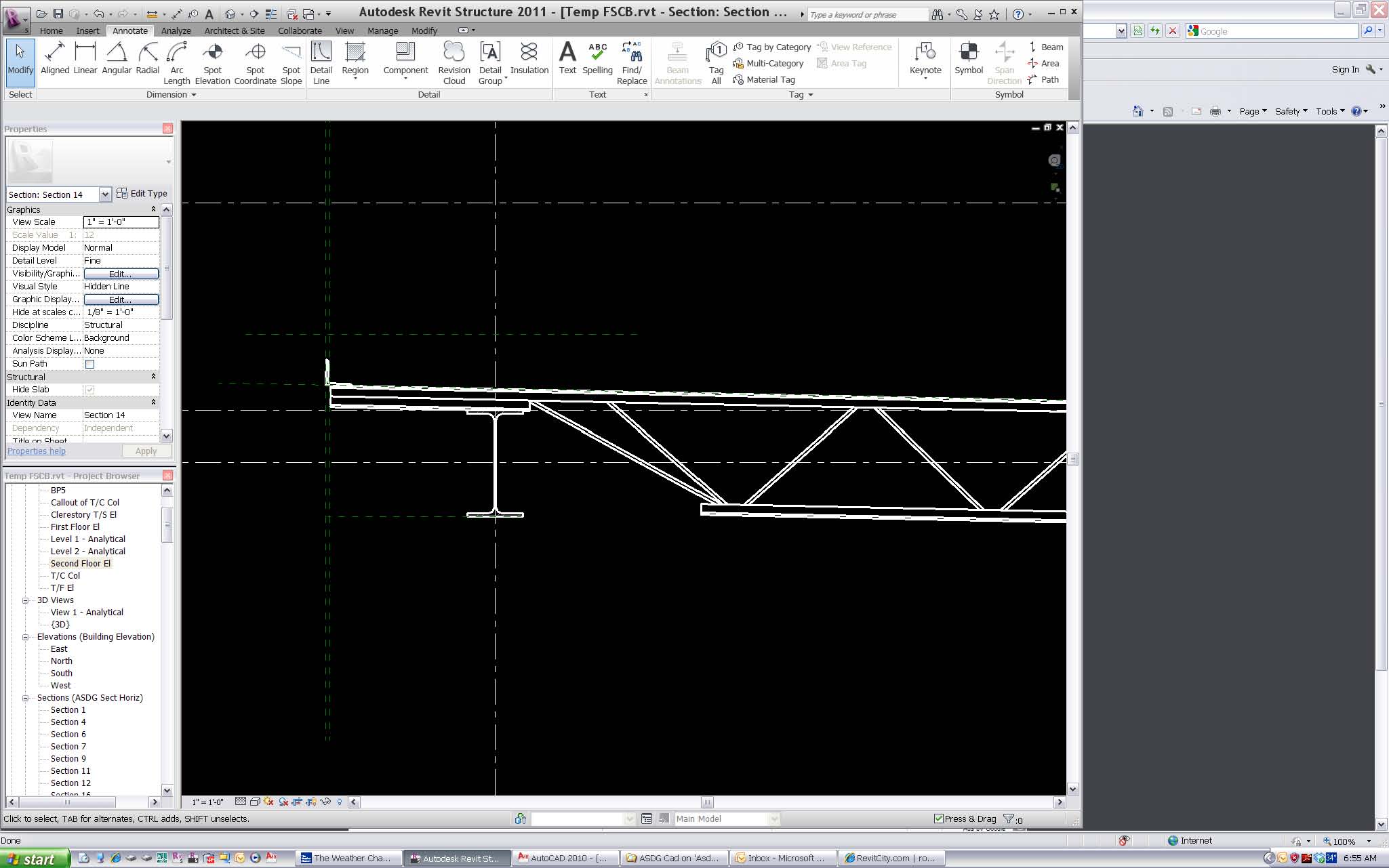

Sorry - the picture belwos shows the roff - i got the OOB angle to work. (see image "edge angle" below)

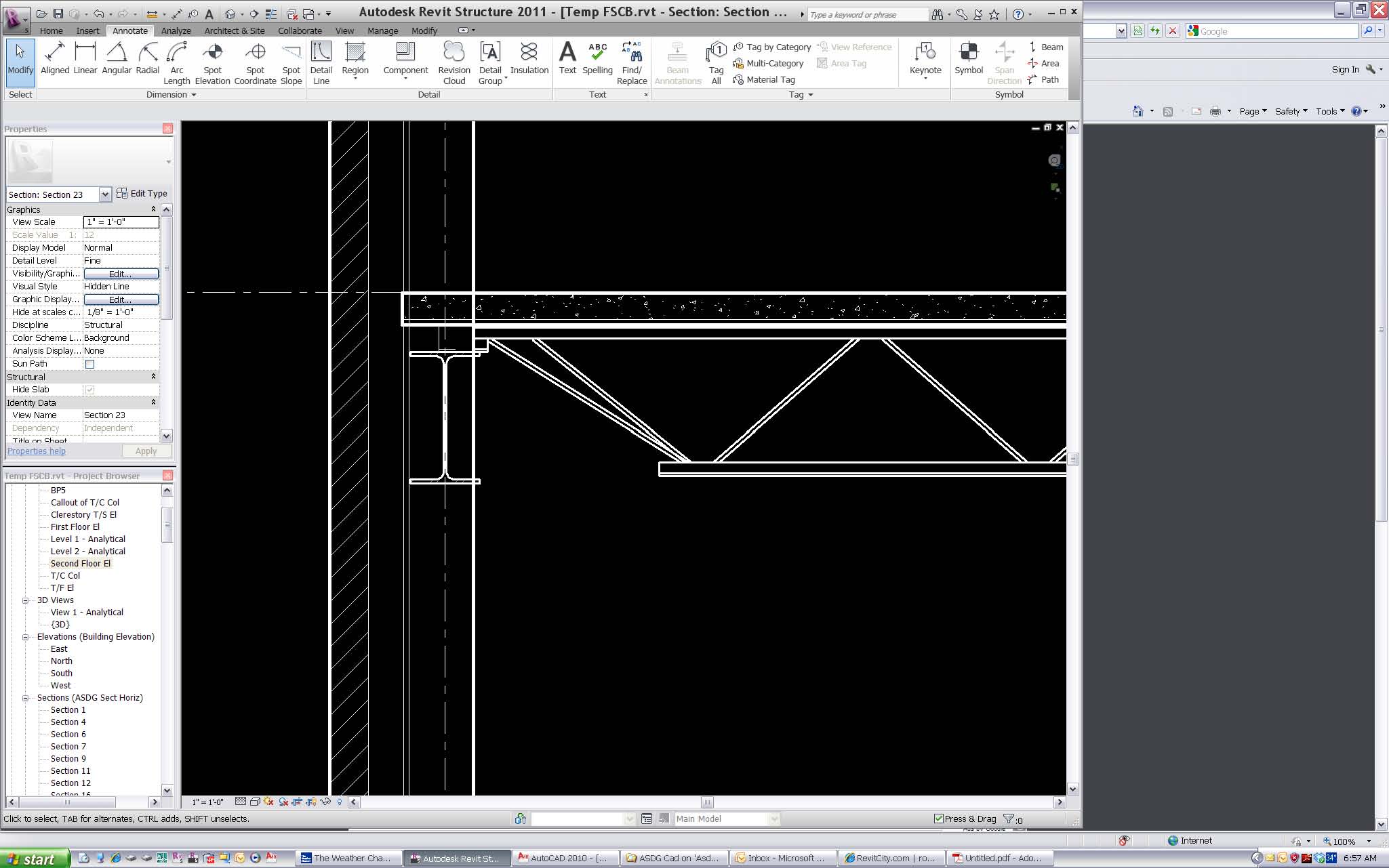

But I am still working on the second floor that has 3" total slab (image below "edge angle second floor").
I do not understand the In place family with a sweep or void - could you explain?
Also in the second image why doesn't my deck show up like deck?
Then I have an issue with the roof deck at the canopy. How do I get it to take the slope of my joists, it keeps wanting me to put in a slope? Also how do I put in just deck and have it show it correctly in section?
-----------------------------------
