Forums >> Revit Systems >> Technical Support >> Double Pitch Delima

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Oct 5, 2011 at 10:24:09 AM | Double Pitch Delima

#1

jlevyarchitecture


active
jlevyarchitecture Avatar

Joined: Wed, Dec 10, 2008
13 Posts
No Rating


In my 3 years that I have been doing REVIT this is the first time I have run into this problem.  (V-2012 Arch).

I have searched the threads and seen similar questions but the responses have not worked.  Doing a prelim

Barn design for a project and can not get (see attached) Roof 1 to join roof 2.  I have have tried multiple possibilities

including Changing pitch, roof types, intersection heights, offsets etc... to no evail.  I get a myriad of errors including the

2nd jpg.  I need this on the front and both ends.  I have tried using a complete boundary and each side also.

Any help would be greatly appreciated.

JL


This user is offline

View Website

Wed, Oct 5, 2011 at 10:43:26 AM | Double Pitch Delima

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 395 Votes


No attachments.  The image must meet the size limits.  We usually use ScreenHunter Free - for screen captures that are small files.


This user is offline



Wed, Oct 5, 2011 at 11:50:55 AM | Double Pitch Delima

#3

mbsteve


active
mbsteve Avatar

Joined: Fri, Sep 22, 2006
759 Posts
4 Stars: 13 Votes


I use Jing for screen captures works great and is free.

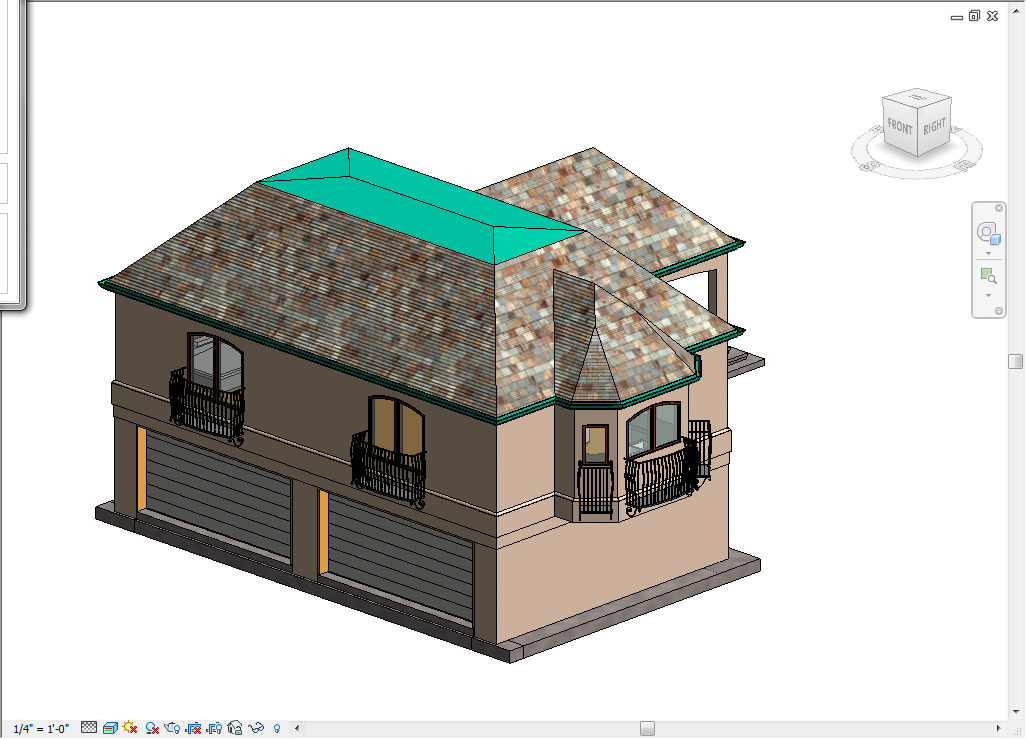

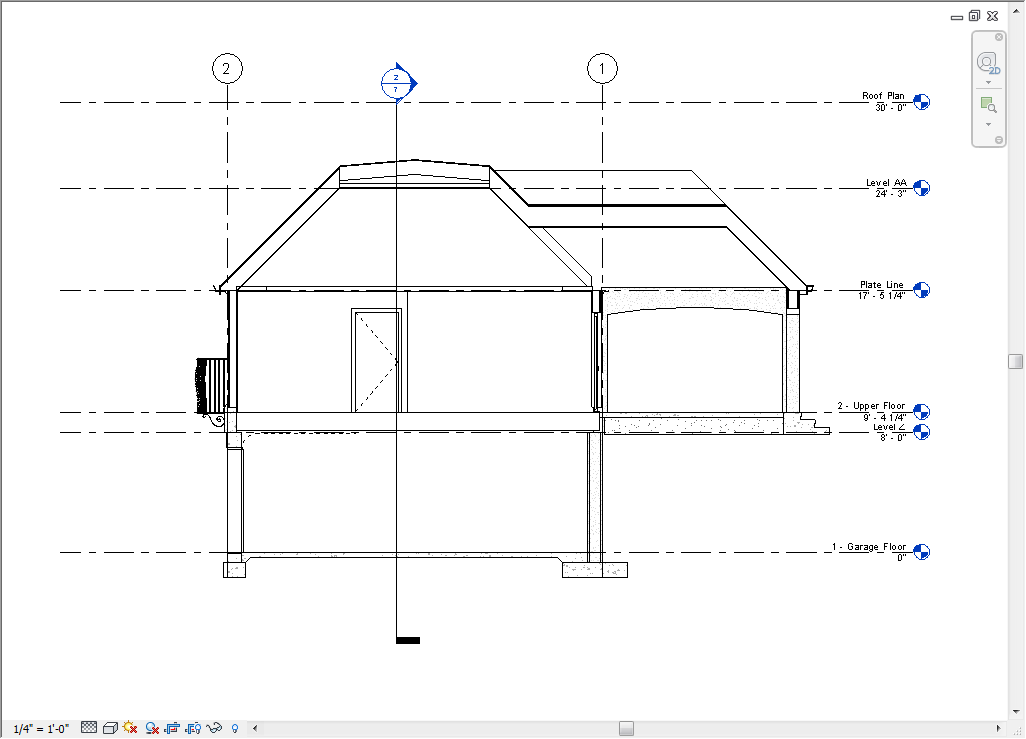

For construction of multi pitched roof, the one attached, was created by footprint, and setting a top limit in theroof properties box of level AA. Then a second roof was constructed above it using level AA as the view level, with a very flat pitch.

Good luck



Attached Images


This user is offline
