Tue, Nov 15, 2005 at 4:05:17 PM | transparent roof

#1

swarch


active

Joined: Fri, Jun 17, 2005
22 Posts
No Rating


i cannot figure out why my roofs are now see-thru. this changed during the course of constructing and editing the model but, for the life of me, I don't know what caused this change. Anyone have ideas?

This user is offline



Tue, Nov 15, 2005 at 5:01:55 PM | RE: transparent roof

#2

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Mon, Jan 12, 2004
2889 Posts
4.5 Stars: 93 Votes


Check the material that is applied to the roof... You may have adjusted the material that the roof was using and thus made it transparent. Reset the material and make sure the transparency in the material settings is set to 0.

This user is offline

View Website

Tue, Nov 15, 2005 at 6:47:21 PM | RE: transparent roof

#3

swarch


active

Joined: Fri, Jun 17, 2005
22 Posts
No Rating


The second floor (w/ roof), elevations and 3D views look correct, only the roof plan is transparent. Strange.

This user is offline



Tue, Nov 15, 2005 at 9:01:37 PM | RE: transparent roof

#4

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Mon, Jan 12, 2004
2889 Posts
4.5 Stars: 93 Votes


Make sure your not in wireframe...

This user is offline

View Website

Tue, Nov 15, 2005 at 10:15:57 PM | RE: transparent roof

#5

Audrie


active

Joined: Thu, Jul 21, 2005
32 Posts
No Rating


I have the same thing in my first project but not the others. It just changed to transparent in for some reason - obviousl something I did inadvertently. I found it very useful at first because it allowed me to see exactly what was where, but then I found nowhere to 'turn it off'. The model is definitely in 'Shading with edges' and all layers of the the roof material are set at 0 transparency. If you find out what it is, swarch, please let me know.

This user is offline

View Website

Wed, Nov 16, 2005 at 3:02:25 AM | RE: transparent roof

#6

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Mon, Jan 12, 2004
2889 Posts
4.5 Stars: 93 Votes


Post a screenshot...

This user is offline

View Website

Wed, Nov 16, 2005 at 4:34:05 AM | RE: transparent roof

#7

Audrie


active

Joined: Thu, Jul 21, 2005
32 Posts
No Rating

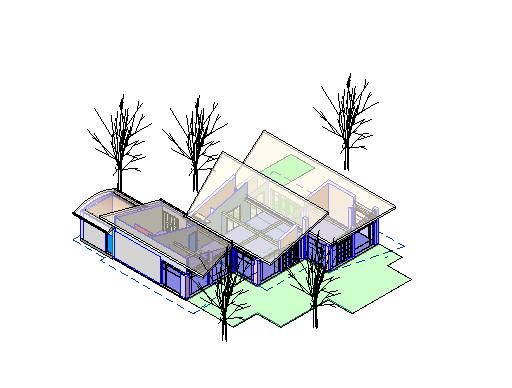

Okay - here is an 3d Aerial of my Arthouse with this crazy transparent roof... Smile

Attached Images

BWLV Arthouse.jpg

This user is offline

View Website

Wed, Nov 16, 2005 at 5:04:16 AM | RE: transparent roof

#8

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Mon, Jan 12, 2004
2889 Posts
4.5 Stars: 93 Votes


Are you sure someone hasn't used the paint tool to paint on a different material to the roof that is overrighting the standard settings?

This user is offline

View Website

Wed, Nov 16, 2005 at 10:32:14 AM | RE: transparent roof

#9

ATisue


active

Joined: Mon, Nov 8, 2004
13 Posts
No Rating


Speaking from prior experience in a situation similar to this..... Is it possible that the Family type in the Element Properties is set to "Sloped Glazing?"

This user is offline

View Website

Wed, Nov 16, 2005 at 1:36:52 PM | RE: transparent roof

#10

swarch


active

Joined: Fri, Jun 17, 2005
22 Posts
No Rating

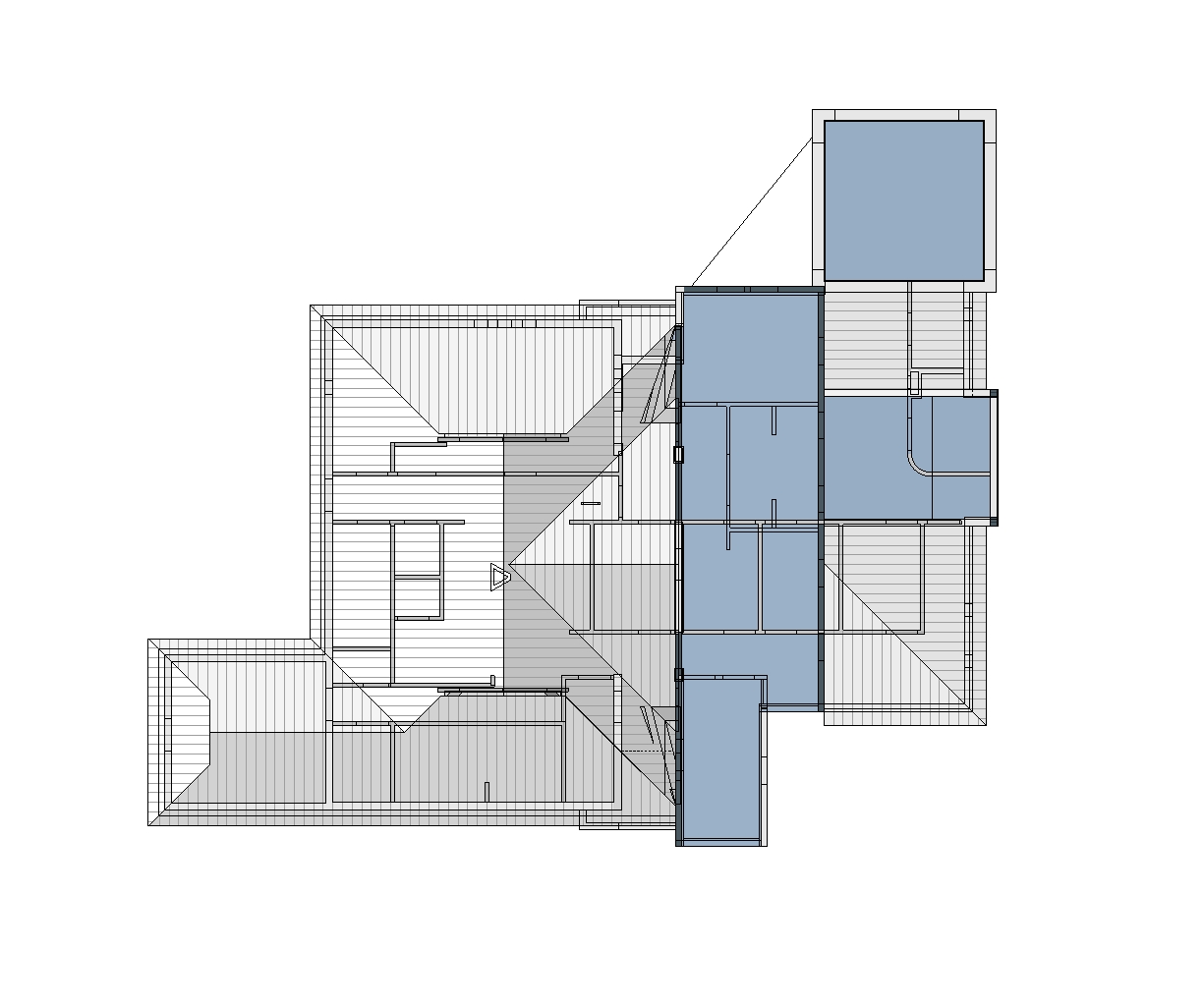

attached is the roof plan. alll other drawings show correctly and i'm in shaded with edges. thoughts?

This user is offline



Wed, Nov 16, 2005 at 1:41:59 PM | RE: transparent roof

#11

swarch


active

Joined: Fri, Jun 17, 2005
22 Posts
No Rating


ok...so the .bmp didn't load, here's a jpg file.

Attached Images

Vet Clinic Roof Plan.jpg

This user is offline



Wed, Nov 16, 2005 at 3:22:48 PM | RE: transparent roof

#12

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Mon, Jan 12, 2004
2889 Posts
4.5 Stars: 93 Votes


That is normal for transparency of objects. Only 3D views show trasparency in objects. It is definitely to do with the material thats been applied to the roof or painted onto it...

This user is offline

View Website

Wed, Nov 16, 2005 at 3:44:26 PM | RE: transparent roof

#13

swarch


active

Joined: Fri, Jun 17, 2005
22 Posts
No Rating


not sure i understand. view is plan, the 3D views show opaque. material transparency is 0. initially the roof was solid in this view and i did not modify the roof type prior to this change. all roof types are now transparent (shingle, generic, metal) and all slopes and phases but initial roofs were solid. thanks for pondering!

This user is offline



Wed, Nov 16, 2005 at 4:08:02 PM | RE: transparent roof

#14

swarch


active

Joined: Fri, Jun 17, 2005
22 Posts
No Rating


it appears to always be in wireframe mode even with the other view options selected....therefore it may not be a "roof" issue but a graphics style issue. what could cause that?

This user is offline



Wed, Nov 16, 2005 at 4:50:23 PM | RE: transparent roof

#15

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Mon, Jan 12, 2004
2889 Posts
4.5 Stars: 93 Votes


Hmm, don't know if i can help without looking at the file. It's one of those issues that requires interrogation of the model. Maybe send to Autodesk Support for them to have a look at?

This user is offline

View Website
