Tue, Dec 28, 2010 at 5:13:31 AM | Help,what's wrong with my door family

#1

fairywiner


active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating

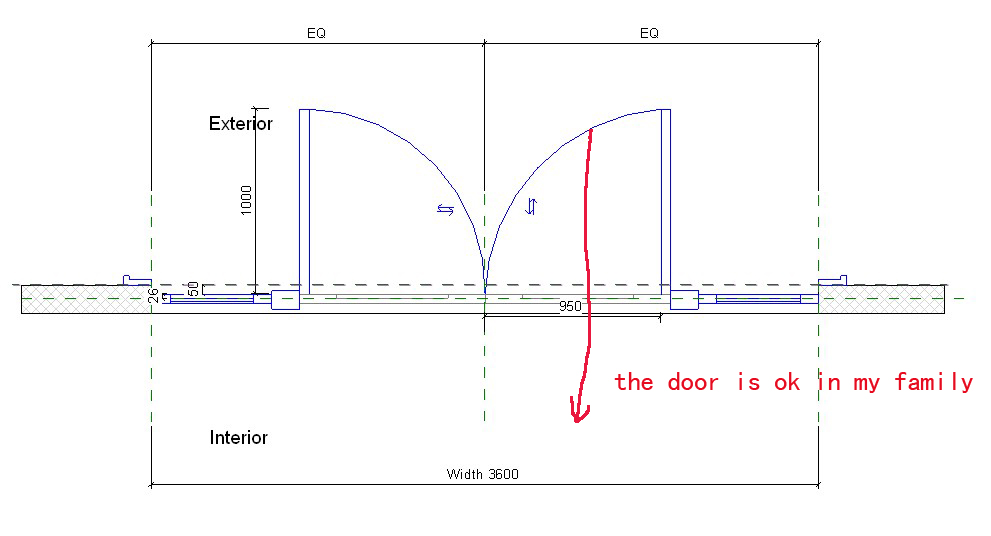

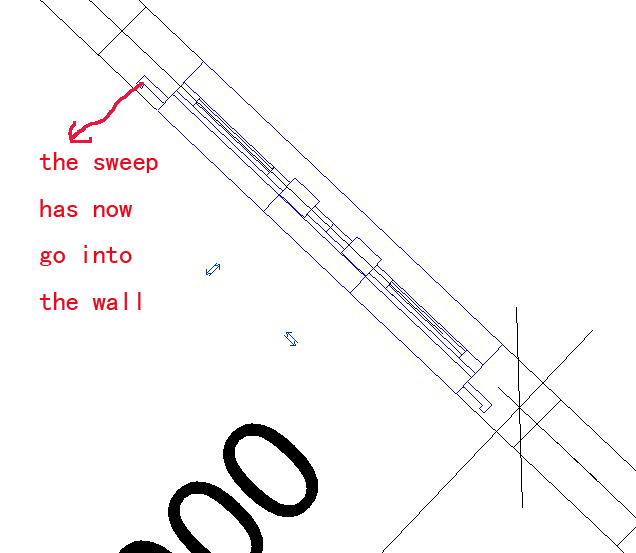

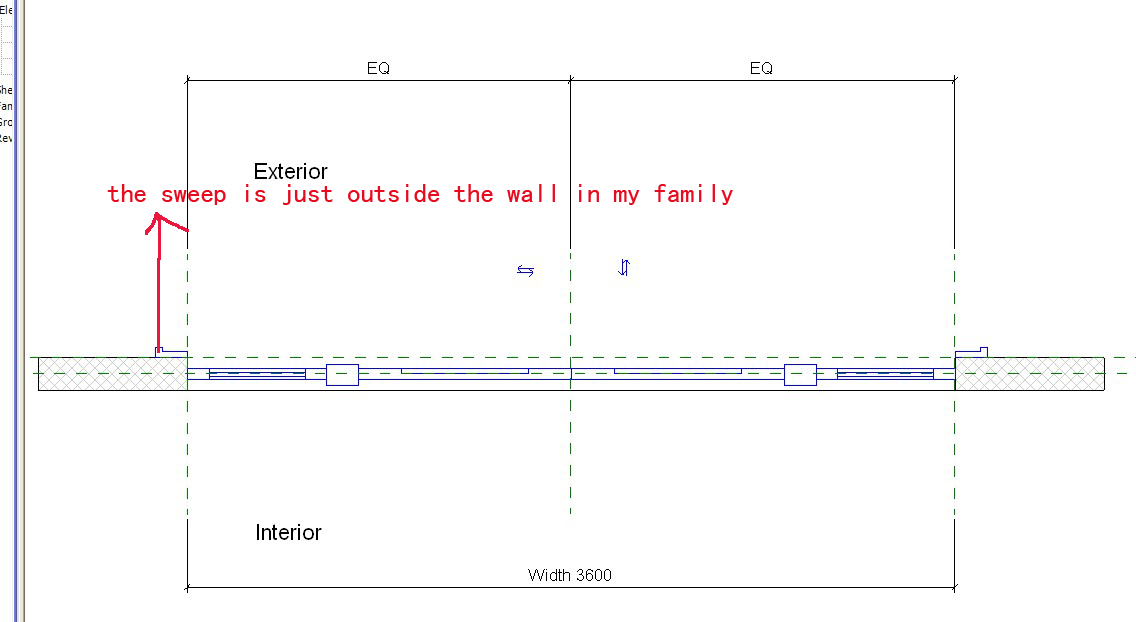

look, I have made a door family,and it looks quite good in the family, as picture 1, and then I inserted it in to my project the sweep have go in to my wall.

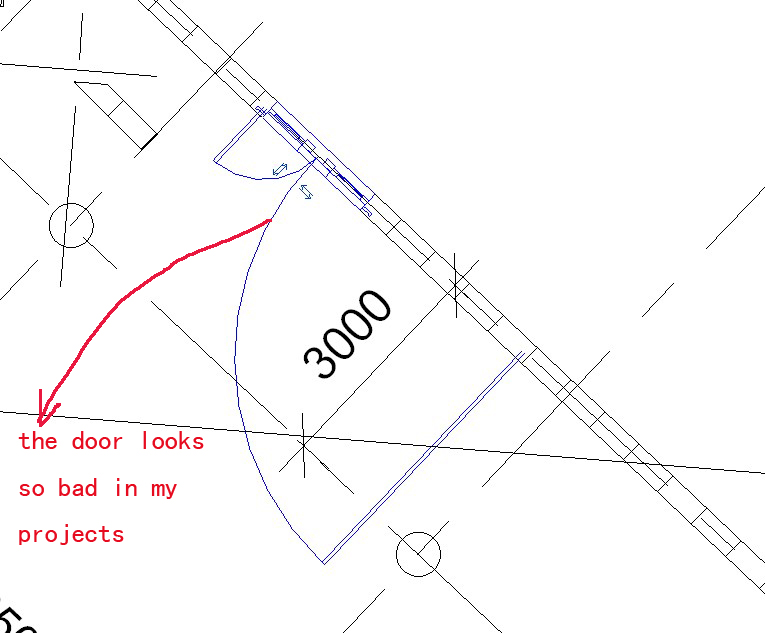

and when I finished door swings in my family, it still looks so bad in my family when I inserted into my family.





Edited on: Tue, Dec 28, 2010 at 5:19:02 AM

Attached Images


-----------------------------------

沧海月明珠有泪

This user is offline



Tue, Dec 28, 2010 at 5:15:08 AM | Help,what's wrong with my door family

#2

fairywiner


active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating


this is my family

-----------------------------------

沧海月明珠有泪

This user is offline



Tue, Dec 28, 2010 at 5:17:54 AM | Help,what's wrong with my door family

#3

fairywiner


active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating


this is my projects file

Attached Files

-----------------------------------

沧海月明珠有泪

This user is offline



Tue, Dec 28, 2010 at 12:59:18 PM | Help,what's wrong with my door family

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

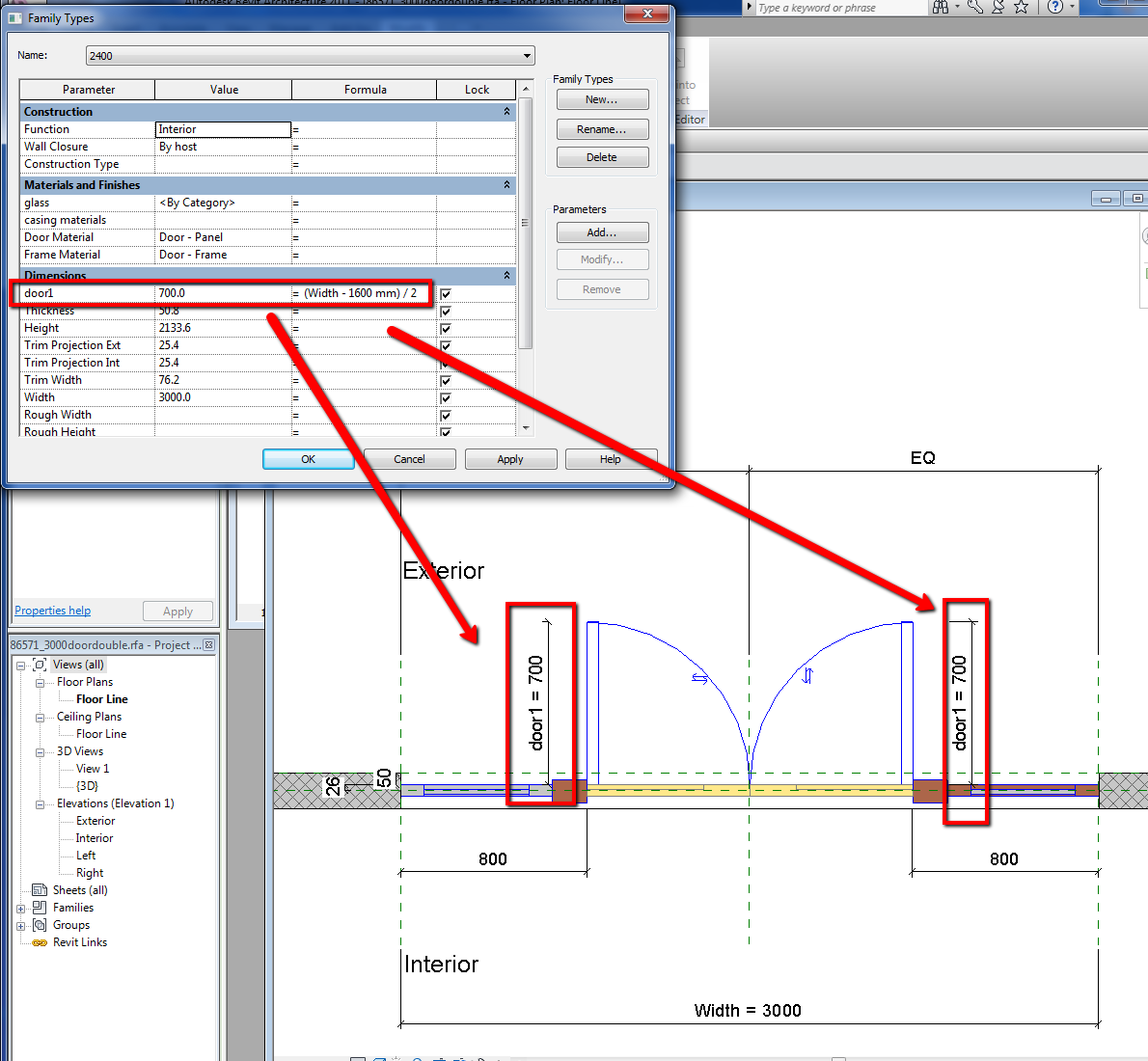

That door is wrong, create a parameter to control that "width" BUT when you are creating those model lines you must lock them (whole padlocks), delete them and do it again, about the sweep, create that in a 3D view and use the "Pick Path" tool and select both lines and the arc then drag those lines to the bottom of that door.





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Dec 28, 2010 at 8:56:31 PM | but I don't know how to add that door parameters.

#5

fairywiner


active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating

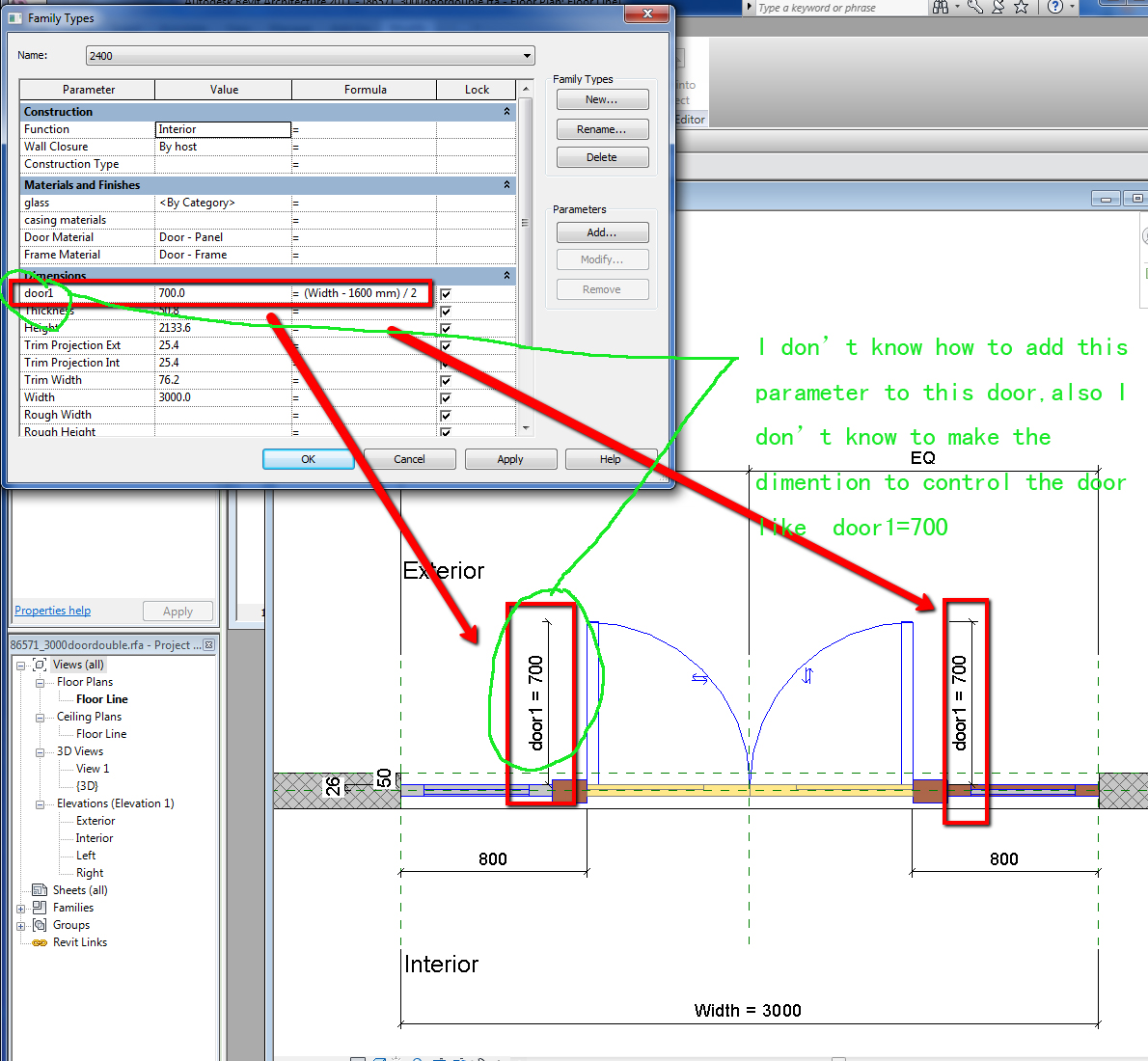

but I don't know how to add that door parameters. see as pictures I changed from your picture.

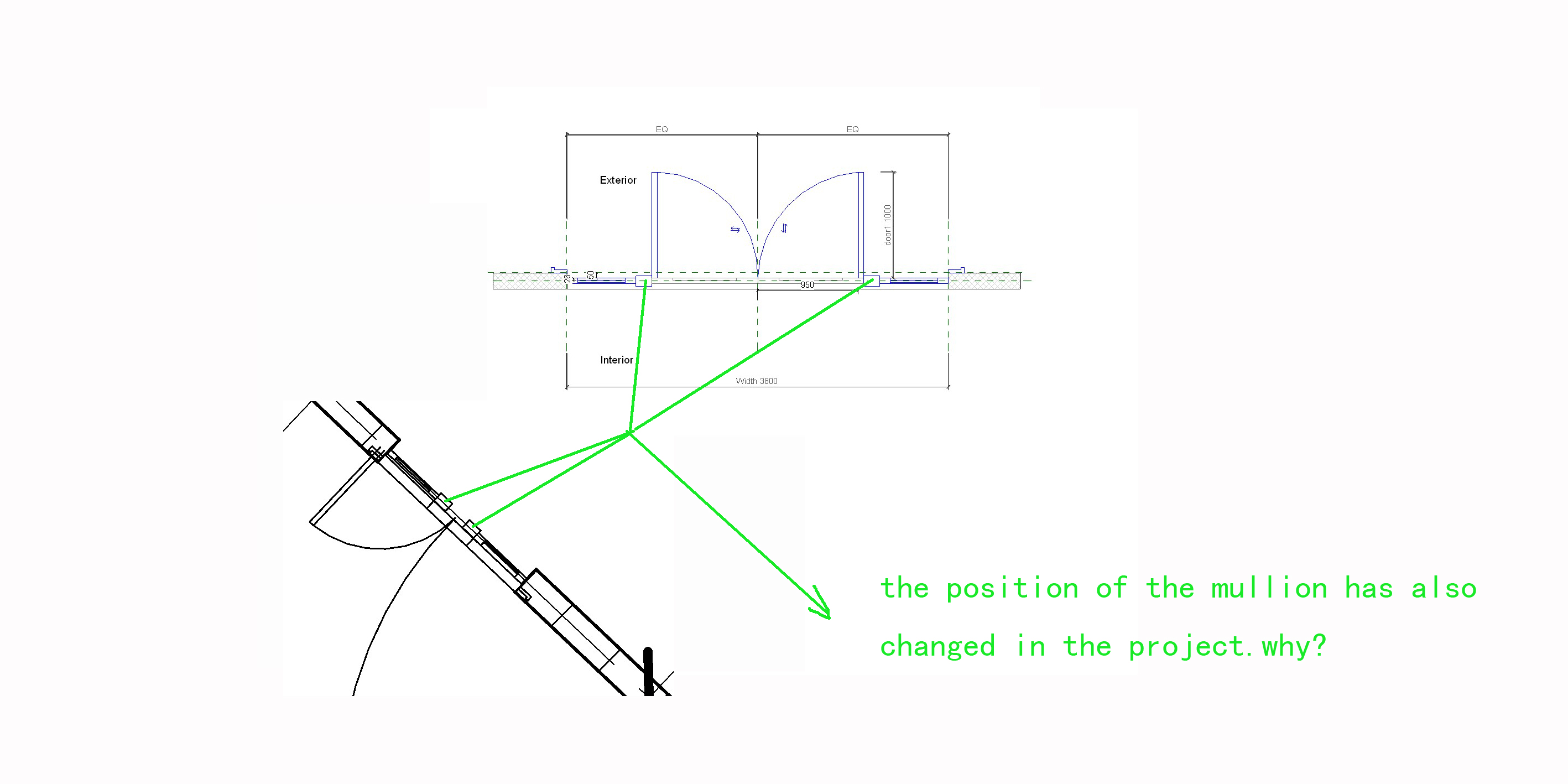

and why the mullion position change so much when the door family inserted into the family. see as picture5.



Attached Images


-----------------------------------

沧海月明珠有泪

This user is offline



Wed, Dec 29, 2010 at 1:04:59 PM | Help,what's wrong with my door family

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


I'm somewhat sure that you do not know much about creating families, am I right? well, my advise is that you should first study the tutorials, here you have the link from Autodesk were you can download "Families_guide_tutorials", like you can see you have in "Chinese" too, http://usa.autodesk.com/adsk/servlet/item?siteID=123112&id=13376394

You can search in Youtube for free videos about creating families.



Watch this videos:

http://screencast.com/t/W5lbIvm4ll

http://screencast.com/t/Ihyq1juXX3j0








-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Dec 29, 2010 at 8:16:34 PM | I just want to say thank you very very much for your help!

#7

fairywiner


active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating


Yes,I have just studied two revit  tutorials and I am not very familiar with revit,espacially some specific skills that did not mentioned too much in the tutorials files. But I do think revit can enhance large work efficiency.  The files you send me did great help for my learning to make family, so thank you very very much for your help.


-----------------------------------

沧海月明珠有泪

This user is offline



Thu, Dec 30, 2010 at 8:06:56 AM | Help,what's wrong with my door family

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


I suggest that you also visit this site :  http://usa.autodesk.com/adsk/servlet/item?siteID=123112&id=11091739 and for sure dowload and thoroughly read the Families Guide
