Hi I am trying to make a model of building like this (image 1) I know most of dimensions

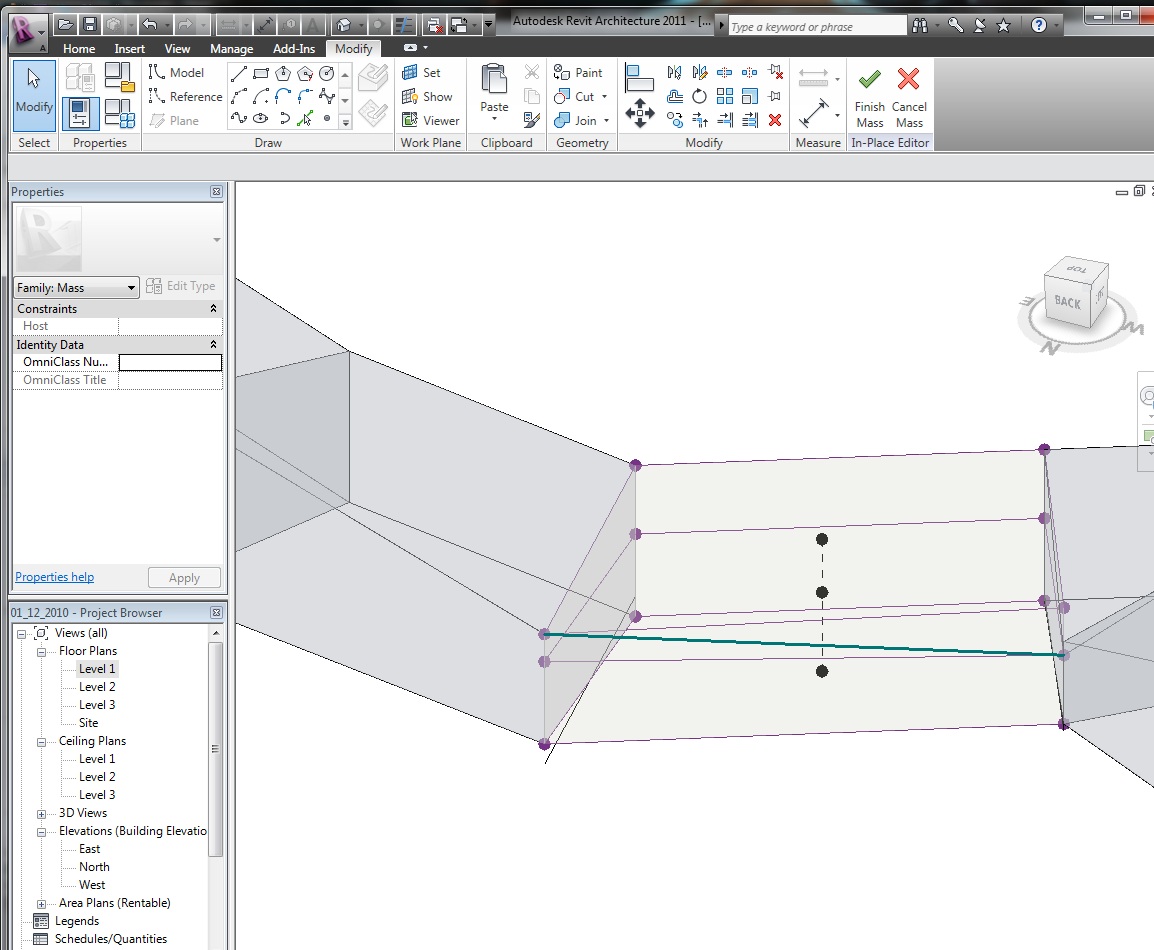

 I made a form for each segment but I have some problems (image 2)

for example with triangle- piece roof (mass doesnt allow edges on top)

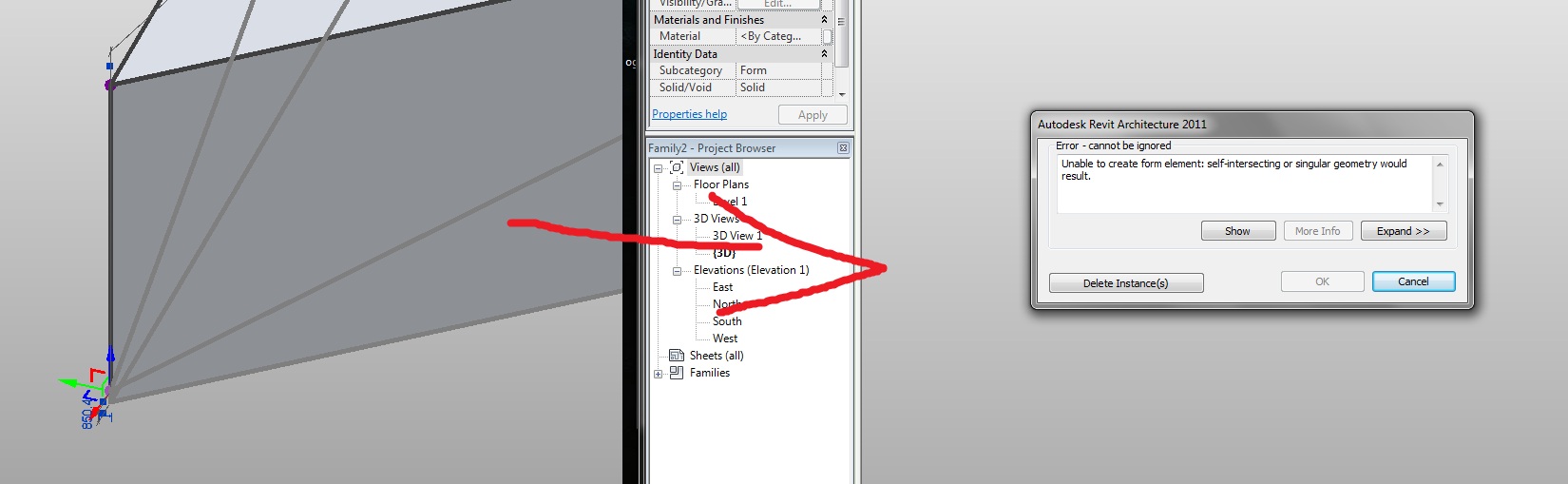

and with this triangular wall (selected edge)

notice that walls are leaned basically in each axis -.-

I am stuck, how to do it?

Attached Images

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

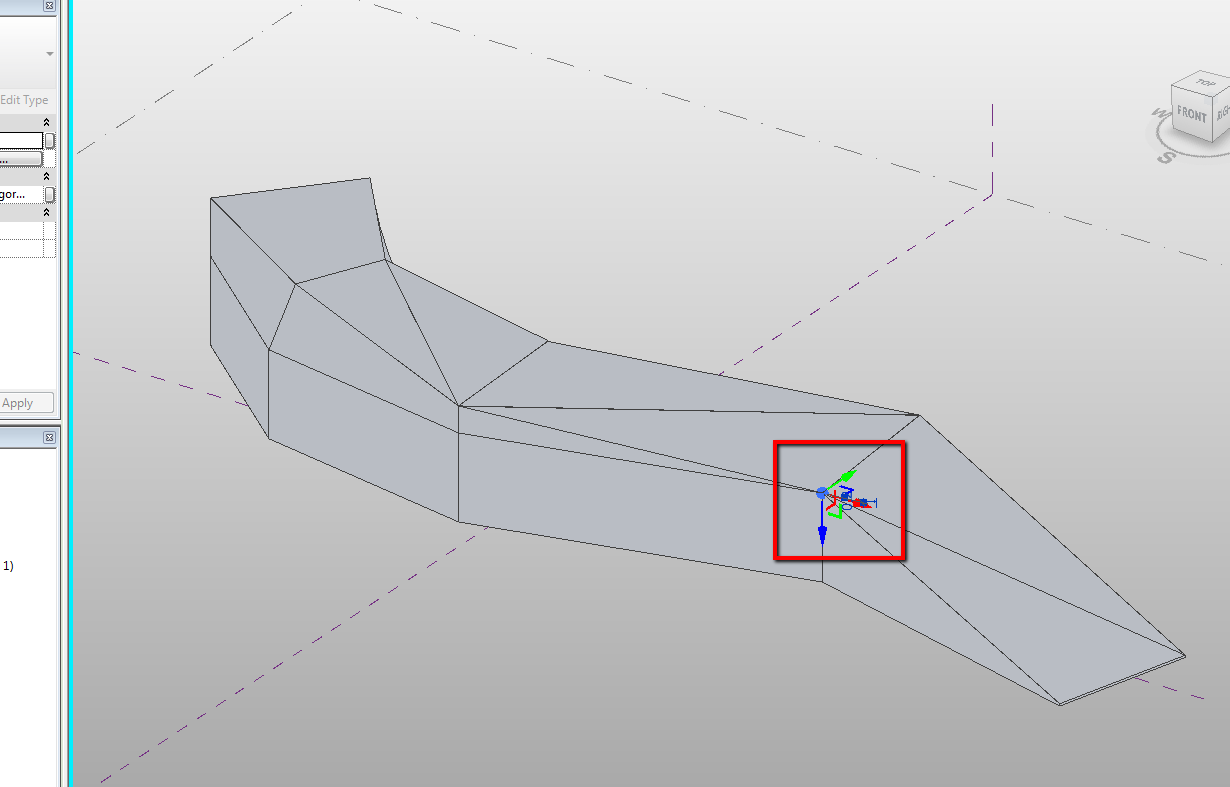

Do you know you can also manipulate the points? with your Spacebar you can toggle the axis (coordinates).

Attached Images

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline

rkowalski

active

Joined: Thu, Oct 28, 2010
12 Posts
No Rating

how did you make the edges on the roof?

Your model is exactly what I need.

Could you briefly describe how you did it?

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

Just create that separatly and adjust the "Points" like I told you before...

Attached Images

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline

rkowalski

active

Joined: Thu, Oct 28, 2010
12 Posts
No Rating

This user is offline

rkowalski

active

Joined: Thu, Oct 28, 2010
12 Posts
No Rating

aaargh sorry :/ but:

it doesnt allow me to neither create form nor  move  vertex down to merge with lower one

I dont know how to make this form that is selected in your last picture

Attached Images
