Forums >> Revit Building >> Technical Support >> Curtain wall mullions divided
|
|
|
active
Joined: Sat, Mar 10, 2007
11 Posts
No Rating |
All of the mullions that I insert on my curtain wall gridlines are divided in the mid span. Even my doors inserted show a division in the middle. What am I doing wrong? It doesnt seem that there are hidden grids at the mid points.
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Not sure what you are asking. Mullions are placed according to their properties: Dimensions Width on side 2 Sets the width of side 2. If you have a loaded a custom profile, this value is calculated from the mullion profile. Width on side 1 Sets the width of side 1. If you have a loaded a custom profile, this value is calculated from the mullion profile. ...you wrote "Even my doors inserted show a division in the middle."... Doesn't make sense. Yes - A CW door has a reference plane in the middle.
|
This user is offline |
|
|
|
active
Joined: Sat, Mar 10, 2007
11 Posts
No Rating |
I have attached a drawing showing the sections.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Your elevation (not section) that you posted don't show me anything. They look ok and they don't show a door. Perhaps if you add some notes about where you are having a problem and be more descriptive than "... All of the mullions that I insert on my curtain wall gridlines are divided in the mid span. "
Edited on: Tue, Oct 12, 2010 at 12:07:26 PM
|
This user is offline |
|
|
|
active
Joined: Sat, Mar 10, 2007
11 Posts
No Rating |

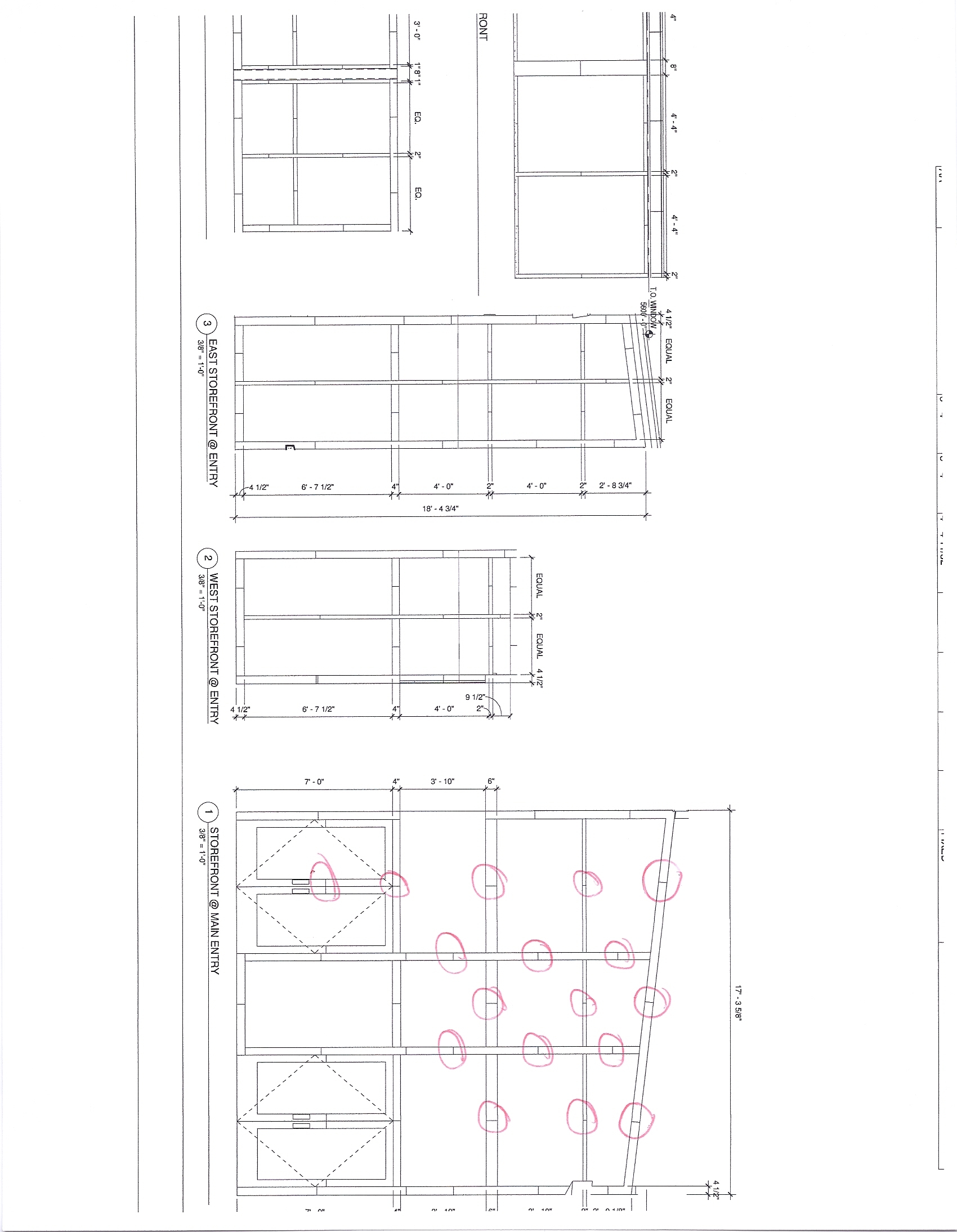

I have attached elevations showing the mullion "sections". I circled a few of them so you can see what I'm talking about. Notice the doors have also been divided.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Thanks, now we can understand the question. Look at your material settings for what you have assigned to your CW mullions and door. I believe this is a surface pattern in that material.
Edited on: Tue, Oct 12, 2010 at 12:36:24 PM
|
This user is offline |
|
|
|
active
Joined: Sat, Mar 10, 2007
11 Posts
No Rating |
That was it. Thanks a lot. I would never have thought of that.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Glad I helped. As you can see, your original question was very miss-leading. You thought there was a "split" in your mullions and that really tracked us in the wrong direction. The image was the key to understanding the problem.
|
This user is offline |
|
|
|
