Hello!

Thank you for taking the time to read my post! This might not seem like it makes scene but its for a random project i'm working on.

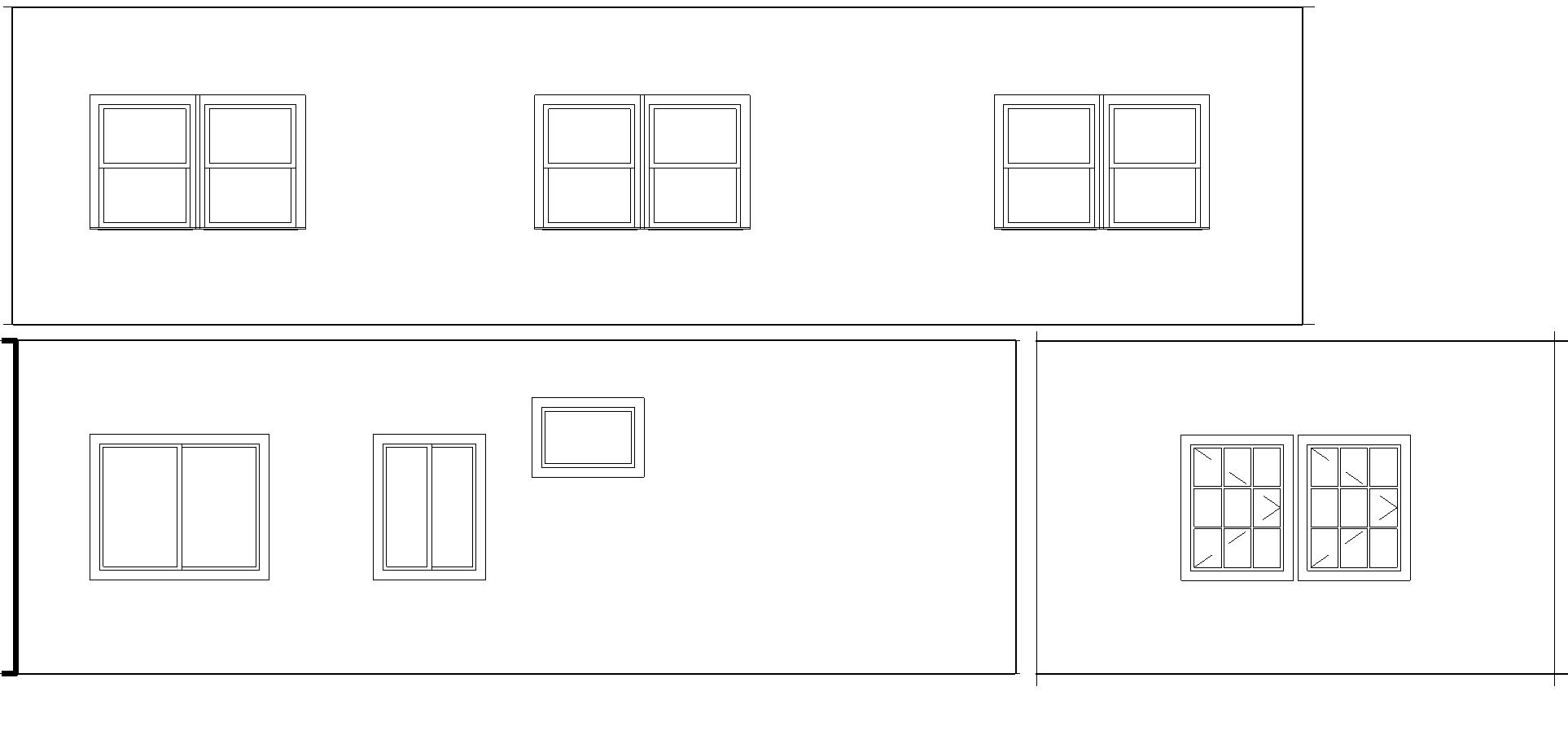

I am trying to get an 2D image (maybe the wrong term) of every wall in my house (both sides to scale). Then i would like to some how export them in a way where all the walls shown. i attached this image to give an idea of what i'm talking about. I just used print screen and paint to show you what i'm trying to do. (not a realistic option)

Thanks so much!

-Grant

Attached Images

This user is offline

grantcad

active

Joined: Sat, Aug 21, 2010
3 Posts
No Rating

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

These  are called interior elevations.  In your plan, just add an elevation callout in your room and pick all four directions.  This will create 4 elevations which you can then place on a sheet or ... export, if that is really what you want to do.  (I think you may have a terminology problem here.)

Read your help >> Creating an Elevation View
