Forums >> Revit Structure >> Technical Support >> Hatch Pattern
|
|
|
active
Joined: Mon, Oct 6, 2008
25 Posts
No Rating |
 Hi,

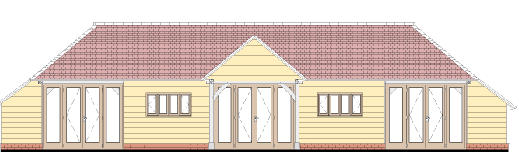

Was wondering can anyone point me in the right direction, i want to apply a hatch pattern to a surface with horizontal lines but differntly spaced from large gaps down to small gaps, as the attached picture, Any guidance be gratefully receievd? Thanks Geraint
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Hatch patterns only work as "patterns". That means the "pattern" has to repeat. Where is the repetition on what you want? - I don't see any, therefore, it can't be a pattern.
|
This user is offline |
|
|
|
active
Joined: Mon, Oct 6, 2008
25 Posts
No Rating |
The pattern runs horizontally
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
So you are saying that your "pattern" is your wall height? Fine, write a pattern that is taht large then.
|
This user is offline |
|
|
|
active
Joined: Tue, Jan 27, 2004
80 Posts
|
That's the right answer. Each pattern line would be of the form 0,0,y,0,z where 0 is zero, y is the line's elevation and z is greater than the height of any facade using the pattern. For a MODEL pattern Z should be less than 840" to allow the pattern to load at 1:1 scale. A similar pattern with short vertical additions can be used to create a pattern for graduated slate roofing. hth, Hugh Adamson www.hatchkit.com.au
|
This user is offline |
