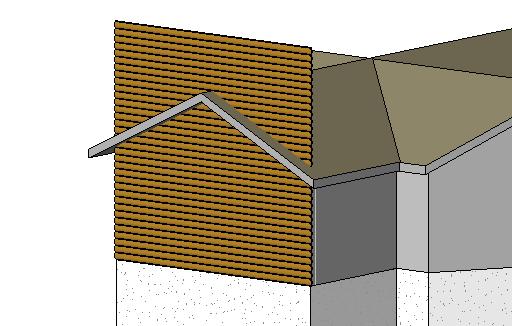

I'm working on a log home project and created a wall sweep in the form of a log and extended up the wall. i have attached the top of the wall to the bottom of the gable end of the roof however, the log sweeps that i have created aren't stopping at the roof and extend past. Hw can i get the wall sweeps to attach cleanly at the bottom of the roof? any help and/or suggestions would be great. I have attached a jpg of the issue.
|
This user is offline |
|
 |
|
|
|
active
Joined: Tue, Aug 26, 2008
22 Posts
No Rating |
"I'm working on a log home project and created a wall sweep in the form of a log and extended up the wall. i have attached the top of the wall to the bottom of the gable end of the roof however, the log sweeps that i have created aren't stopping at the roof and extend past. Hw can i get the wall sweeps to attach cleanly at the bottom of the roof? any help and/or suggestions would be great. I have attached a jpg of the issue."
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |

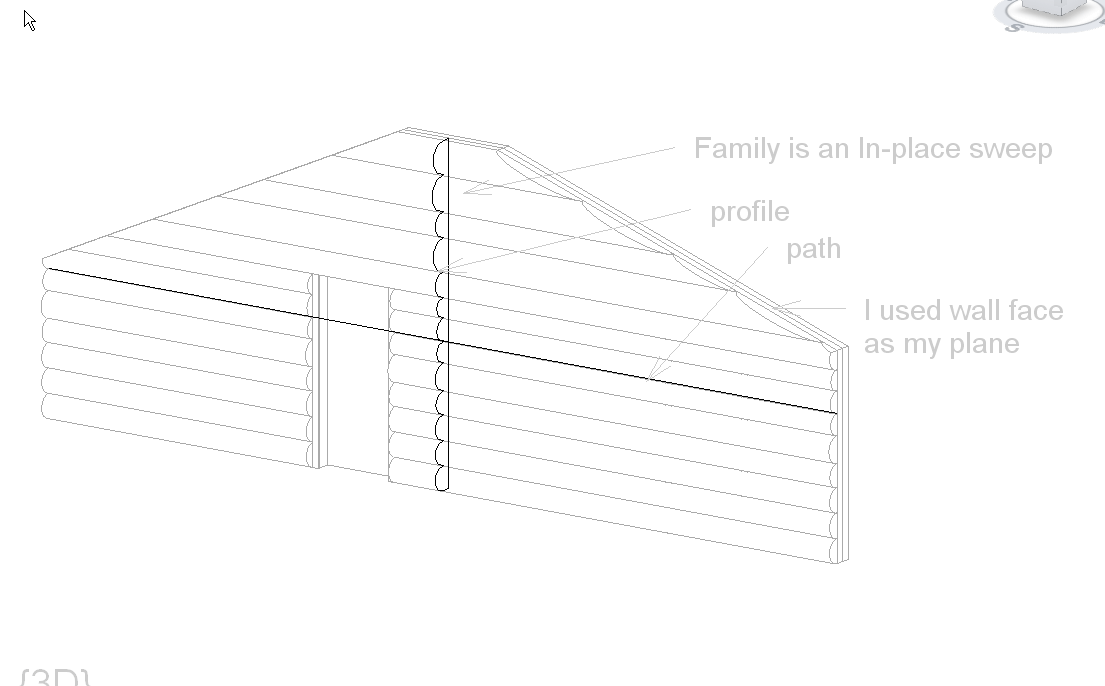

As you have found out, wall sweeps don't work well for this. Instead, do an inplace family for your wall that is your stacked log profile and include a void form then that cuts the family to your gable profile.
Edited on: Wed, Jun 17, 2009 at 12:00:04 PM
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|

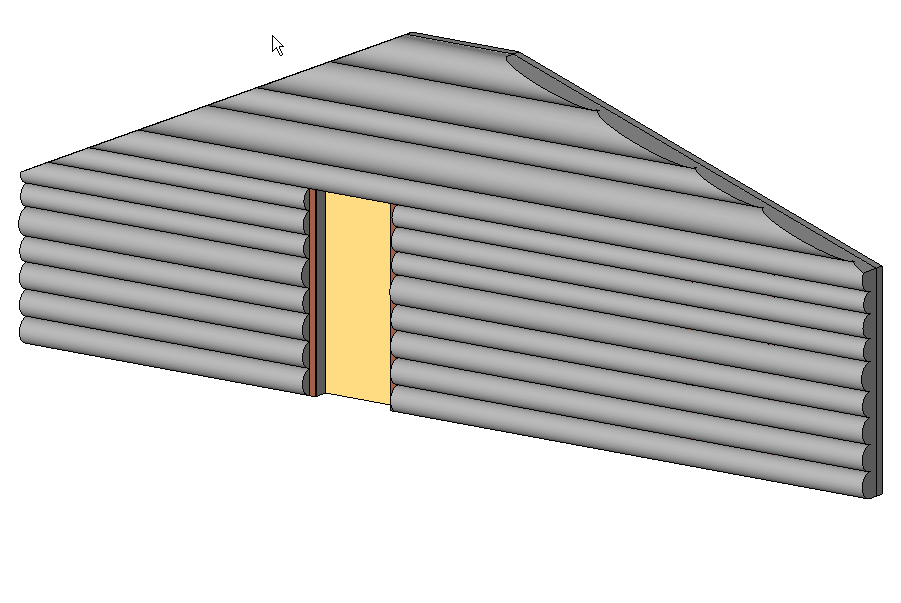

Note ... I still have a wall behind this log "face" to host my door.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|

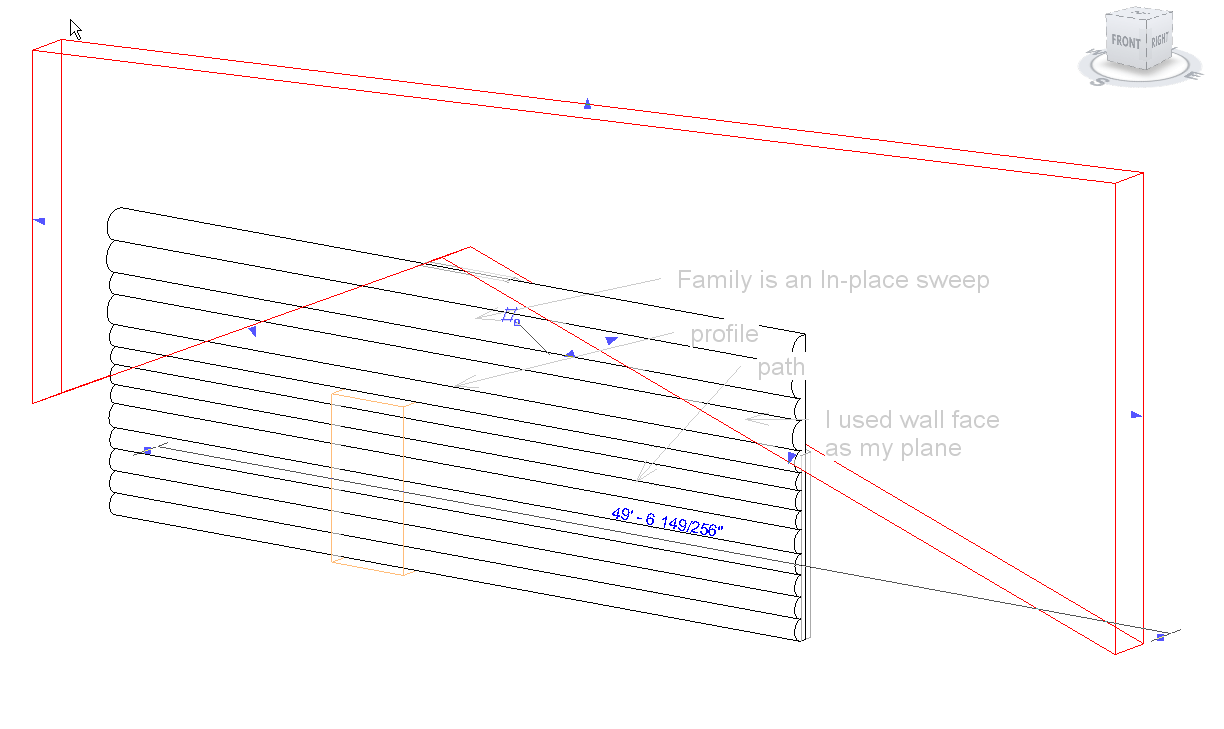

More images on construction ... pick your wall face as your work plane. Do the void in the same family... you will need to set a negative number as the start for the void.
|
This user is offline |
|
|
|
active
Joined: Tue, Aug 26, 2008
22 Posts
No Rating |
THANKS!! WORKED PERFECTLY!!!
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |

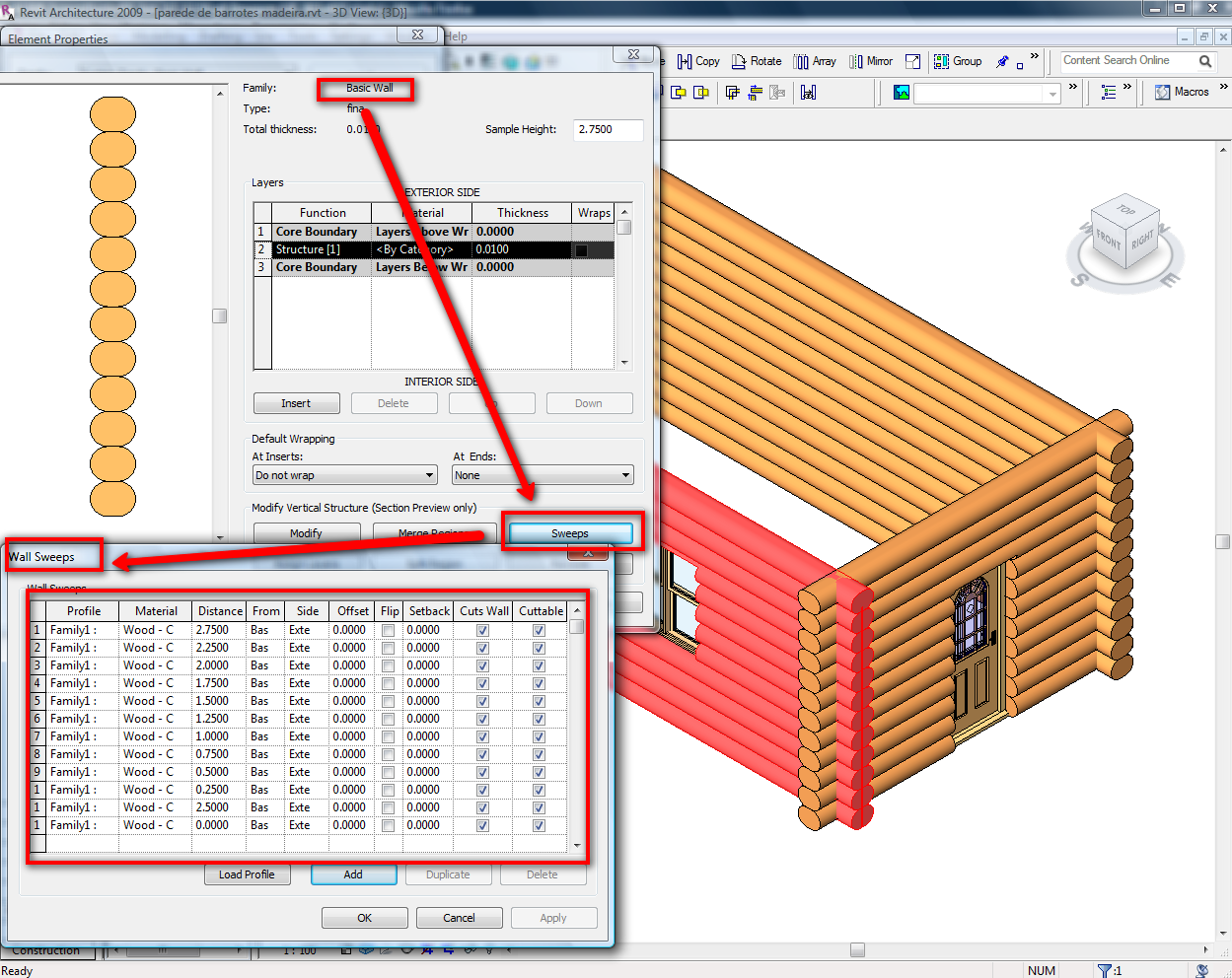

Another Idea....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Typhoon, will that trim to the gable roof? I don't think so.....
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Yeah, you are right.... but you can also using the void to cut what you want....
Edited on: Wed, Jun 17, 2009 at 2:46:55 PM
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Thu, Jan 24, 2008
193 Posts
 |
What version are you using? In 2010, if you select the wall you can edit the wall's profile to make it appear how you want. This can be used instead of creating a void. Seems simpler to me.
|
This user is offline |
|
|
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Mars ... sweeps will not trim at an angle - no matter how you edit the wall profile.
|
This user is offline |
|
|
|
active
Joined: Thu, Jan 24, 2008
193 Posts
|
Ok, good to know. I have worked with wall profiles for blockouts in foundation walls and that had worked rather nicely. I admit I haven't tried doing it as an angled line. So I apologize for the misinformation; but still, ended up learning something new as well. Thanks.
|
