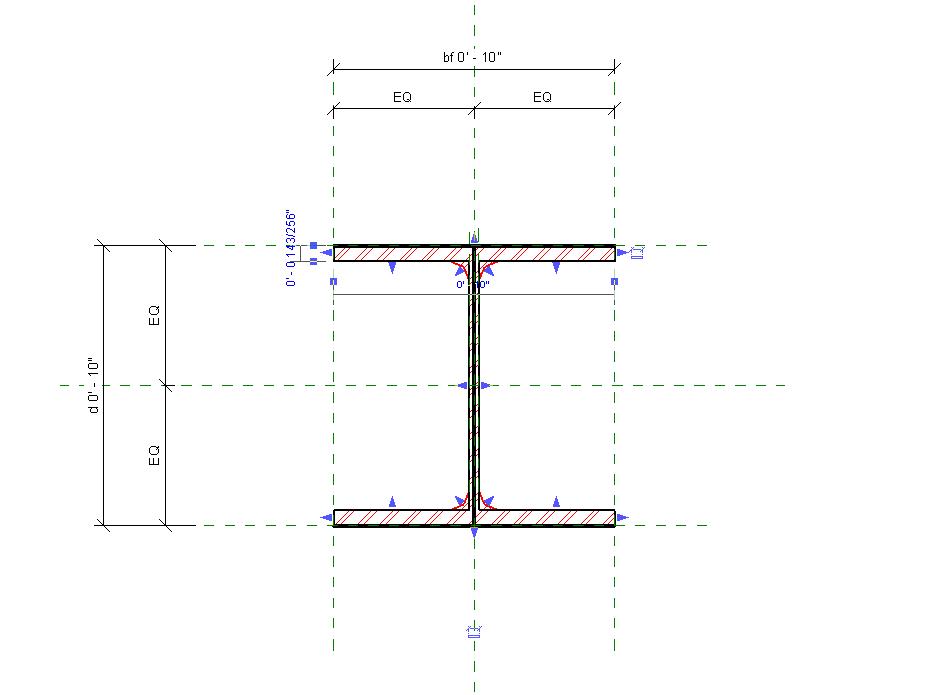

Hi all, when I open the revit library family call w-wide flange column.rfa, I notice when I click on beam in plan view and their are a few blue triangles and it said "extrusion shape hadle"

Is it possible to create that shape handle when we create custum family?





Attached Images


This user is offline



Sat, Nov 22, 2008 at 7:33:44 PM | Shape handle

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 156 Votes


Hi, when you create a Family you create also, Ref. planes, dimensions and parameters, so you attach your model to those ref. plans and you can control the family based in the parameters you create, so, you don't need the "Blue triangles"...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Nov 22, 2008 at 9:09:32 PM | Shape handle

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 215 Votes


If you use a reference plane that has a instance based parameter locating it and your geometry is locked to that plane, the blue grips will show up when you place the family.  Type based parameters will not do this.

This user is offline



Thu, Feb 19, 2009 at 12:32:48 PM | Shape handle

#4

beyondthewall


active

Joined: Wed, Feb 8, 2006
13 Posts
5 Stars: 1 Votes


thanks for that tip.....

in the door family i was working on, when i make the dimension an 'instance parameter' relative to a fixed edge theres no problem but when i make it relative to another ref plane which is not pinned it shows the shape handle
