Thu, Nov 6, 2008 at 11:21:31 AM | Roof centerline

#1

jawii


active

Joined: Sat, Oct 25, 2008
22 Posts
No Rating


Hi.

 I can't figure out how to change the centerline of my roof. I draw the roof by footprint with lines, and set two different angles on each of the slope defining sides of the roof. But how can I change or define where I want the centerline or 'back' of the roof ?

 /jw


This user is offline



Thu, Nov 6, 2008 at 11:37:28 AM | Roof centerline

#2

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4 Stars: 19 Votes


When you set the roof angles the slope defining sides are all at the same level so the position of the ridge is predetermined.  If you want roofs that spring from different heights you will need seperate roofs.

This user is offline

View Website

Thu, Nov 6, 2008 at 1:25:29 PM | Roof centerline

#3

jawii


active

Joined: Sat, Oct 25, 2008
22 Posts
No Rating


ok... I've tried drawing two different roofs, but how do I get them to join together when their angles isn't the same ?

Tried drawing two seperate roofs in the same sketch, but cant get it to work, 'lines intersect' message keep appearing.

/jw


This user is offline



Thu, Nov 6, 2008 at 1:30:53 PM | Roof centerline

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Hi, can you put some images of what do you need???




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Nov 6, 2008 at 1:36:42 PM | Roof centerline

#5

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4 Stars: 19 Votes


Do the roofs seperately as two different roofs.  For a normal roof you must have a closed loop.

This user is offline

View Website

Thu, Nov 6, 2008 at 1:42:40 PM | Roof centerline

#6

jawii


active

Joined: Sat, Oct 25, 2008
22 Posts
No Rating


but at different angles, the ends won't mach against eachother, or how do I combine them ?

This user is offline



Thu, Nov 6, 2008 at 2:00:44 PM | Roof centerline

#7

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4 Stars: 19 Votes

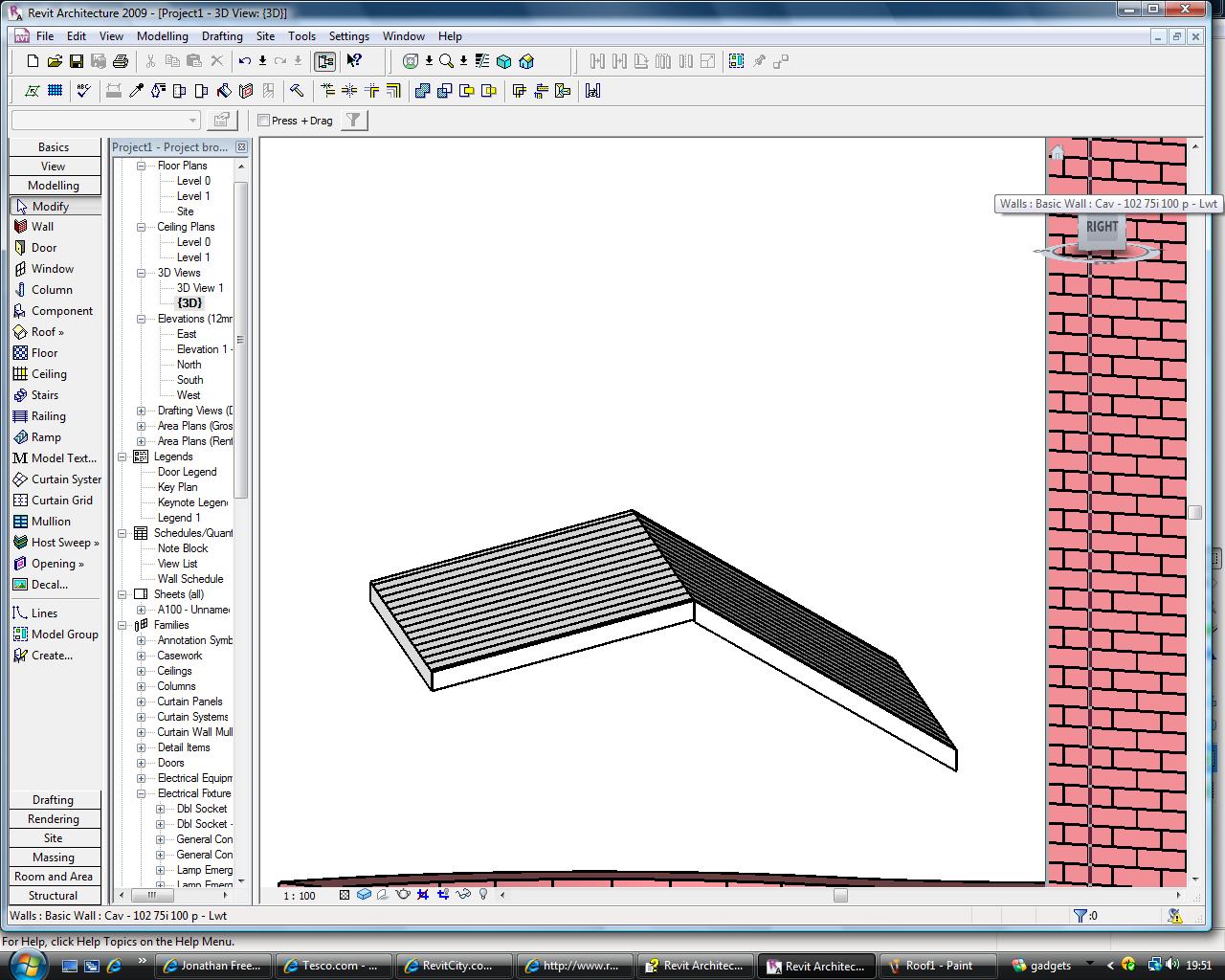

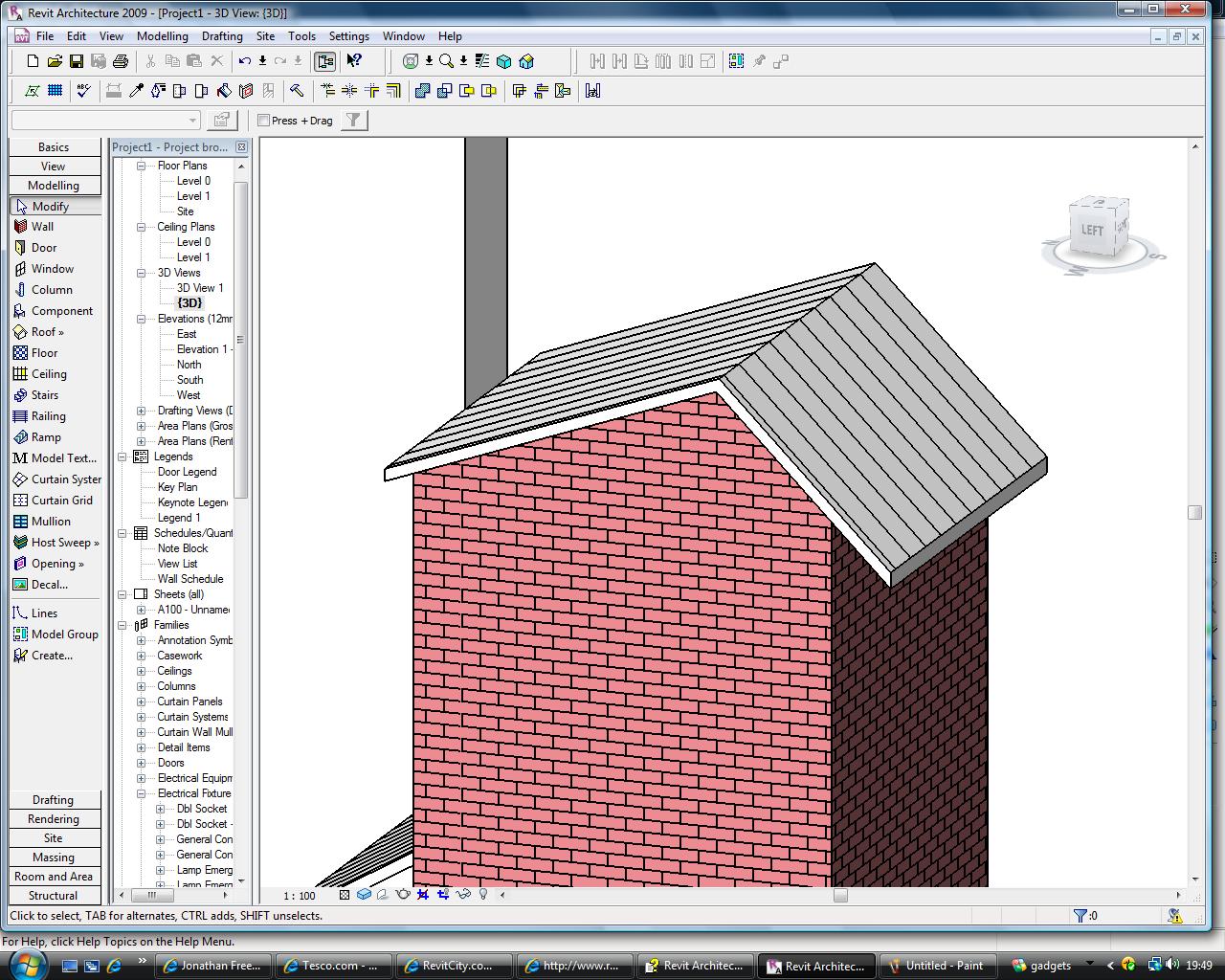

You can extrude the roof (image 1) or create two different roofs with plumb cut to get the edges vertical and then align them (image 2).

Attached Images


This user is offline

View Website

Thu, Nov 6, 2008 at 3:02:48 PM | Roof centerline

#8

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Mon, Jan 12, 2004
2889 Posts
4.5 Stars: 93 Votes


Just do your roof by footprint, then select the slope defining line that needs to go higher and change its plate height offset.  This effectively allows you to control where the ridge will be.

-----------------------------------

Regards,

Chris.

Co-Founder | BIM Consultant | Software Designer  CryingB. Arch)

Xrev Revit API Addins | Revit Rants

This user is offline

View Website

Thu, Nov 6, 2008 at 3:13:42 PM | Roof centerline

#9

jawii


active

Joined: Sat, Oct 25, 2008
22 Posts
No Rating

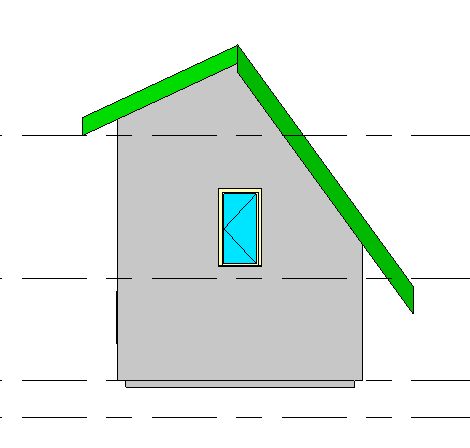

This is something like what i wanna do, but isn't there a way to get the roof to join probably ?

Attached Images


This user is offline



Thu, Nov 6, 2008 at 4:23:26 PM | Roof centerline

#10

jawii


active

Joined: Sat, Oct 25, 2008
22 Posts
No Rating

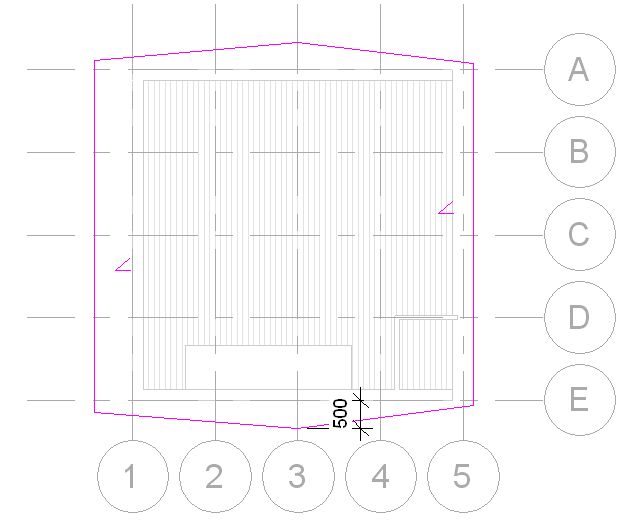

Sounds like that would do the job yes, but how do I get about doing that ? If I change the model line offset hight it doesn't seem to have any effect ...?

Attached Images


This user is offline



Fri, Nov 7, 2008 at 7:34:27 AM | Roof centerline

#11

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4 Stars: 19 Votes


Right click on the slope defining line, go to its properties and adjust the offset from roof base height.

This user is offline

View Website

Fri, Nov 7, 2008 at 1:53:57 PM | Roof centerline

#12

jawii


active

Joined: Sat, Oct 25, 2008
22 Posts
No Rating


But offsetting the line from the roof level doesn't let me control where the ridge goes ?

 Anyways, I'm on the right track now, so thanks alot for the help to everyone responding on this thread, it's nice to see that there are some people who are still willing to answer "stupid newbie questions"...

 /jw


This user is offline
