Forums >> Revit Structure >> Technical Support >> Custom Structrual Framing Tags
|
|
active
Joined: Thu, Aug 21, 2008
10 Posts No Rating |

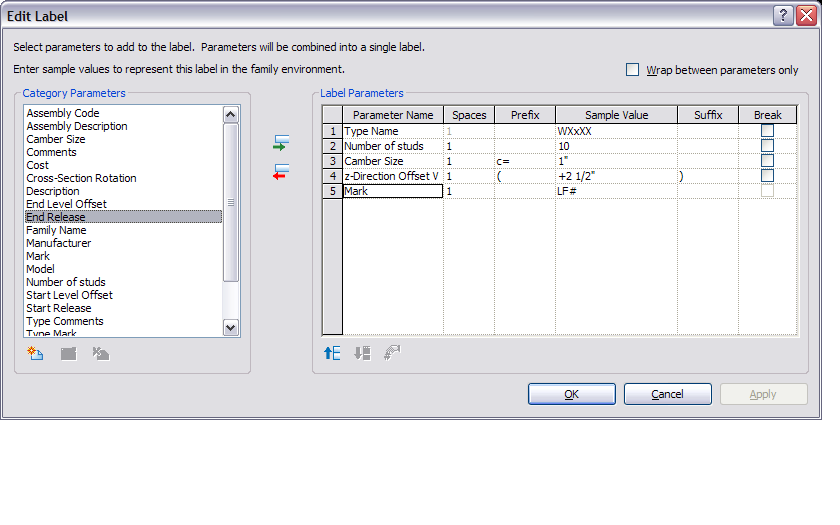

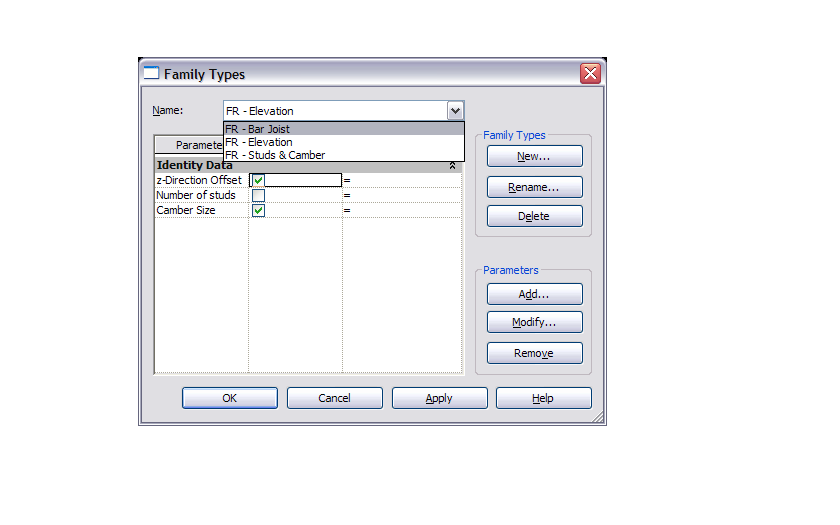

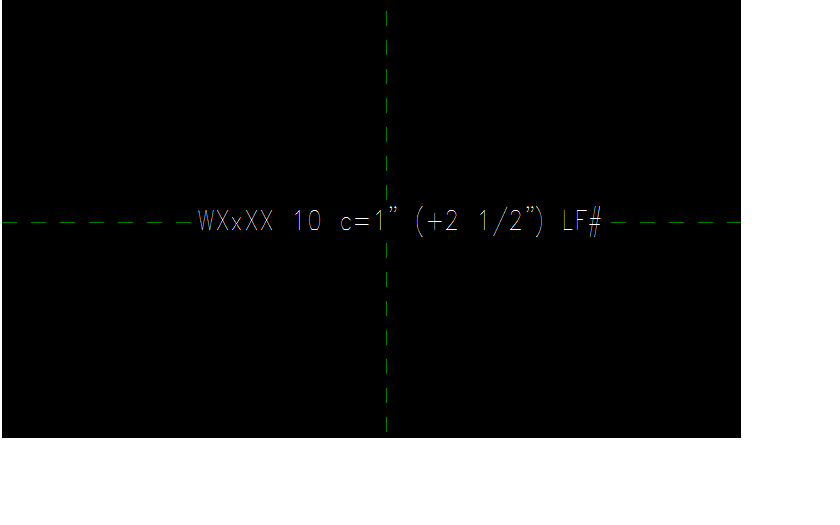

I am trying to create framing tags for composite framing, barjoists, etc. I have created a family called "Structural Framing Tag". In this family I have a label with the parameters shown in the screen shot. I have created family types such as "Bar Joist", "Studs and Camber", "Standard" (See Screen Shot). For my Bar Joist Tag framing tag I only want the Beam Name to show up. For Studs and Camber I want everything to show up except Z-Offset Elevation. For Standard I want the beam name and the Z-Offset Elevation to showup. How do I make only certain parameters visible? The only way I have found to make this work is to create a separate family for each tag. I would prefer having one family with different family types. Any help would be great.
|
This user is offline |
|
|
|
active
Joined: Thu, Dec 16, 2004
792 Posts
|
- rkitect : Part 1: http://tinyurl.com/46adjd
- rkitect : sorry about the music
- Steel2Steel : i assume thats for me rkitect?
- rkitect : yes
- rkitect : http://tinyurl.com/498246
- rkitect : part 2 --^
- rkitect : looks like you got half of it, just needed associate the parameter with the visibility of the label
-----------------------------------
-//------------------------
Carl - rkitecsure[at]gmail.com
Need help? I'm probably in my chat room!
