Forums >> Revit Building >> Technical Support >> roof

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Jun 27, 2008 at 8:11:17 PM | roof

#1

mryland21


active

Joined: Sat, Apr 12, 2008
7 Posts
No Rating


Does anyone have any ideas of how to create this roof?  I've can get the different gables by doing three different roofs, but I'm having a hard time combining them to get the hips and valleys correct.  Is there a way to make one roof with all the correct gables and things?  Thanks!



Michelle


This user is offline



Fri, Jun 27, 2008 at 8:17:20 PM | roof

#2

mryland21


active

Joined: Sat, Apr 12, 2008
7 Posts
No Rating


sorry the pictures i thought i attached were too big.  since you can't see what i'm talking about, never mind.

This user is offline



Sun, Jun 29, 2008 at 4:17:11 AM | roof

#3

mryland21


active

Joined: Sat, Apr 12, 2008
7 Posts
No Rating


Ok hopefully, these files will attach.  If anyone can help me, I'd really appreciate it.  This roof has one primary gable and then 2 cross gables that go out to a point from an aerial view.  I've tried making one roof.  I've also made 3 separate roofs but haven't figured out how to delete the extra stuff after joining the 3 roof geometries.



Thanks,

Michelle



Attached Images


This user is offline



Sun, Jun 29, 2008 at 12:24:38 PM | roof

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 156 Votes


Hi, can you put your model to see what it's wrong?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, Jun 29, 2008 at 2:36:07 PM | roof

#5

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 156 Votes


"to delete the extra stuff" pick in the roof then in TOP menu pick "CUT PLAN PROFILE" and cut what do you want...

See the video: http://screencast.com/t/3kvYFQghdG







Edited on: Sun, Jun 29, 2008 at 9:46:47 AM

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Jun 30, 2008 at 6:14:16 AM | roof

#6

timbo89


active
timbo89 Avatar

Joined: Fri, Dec 14, 2007
135 Posts
4 Stars: 5 Votes

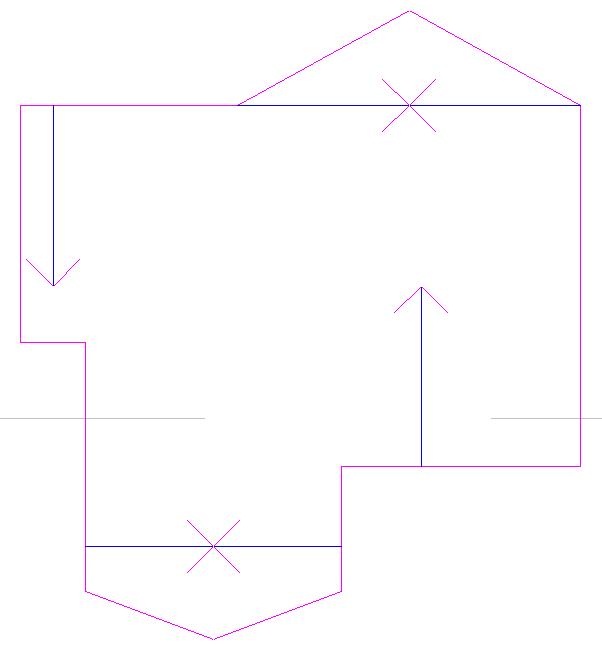

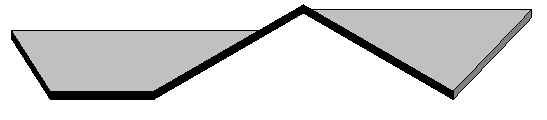

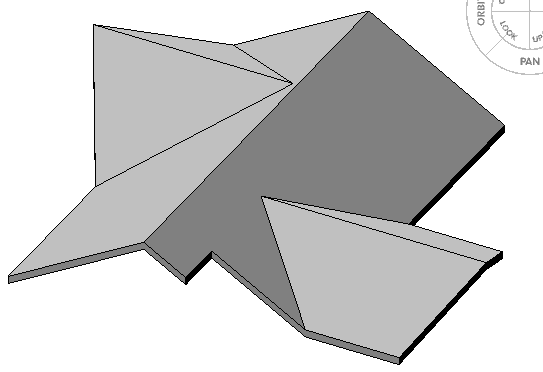

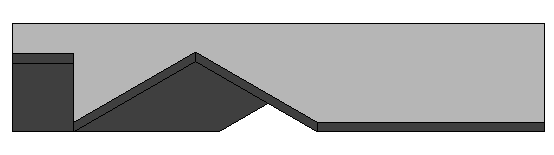

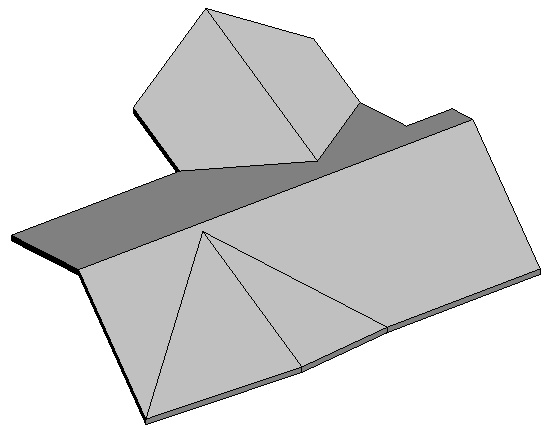

Hey I created this roof. See if my pictures match what your after.

Attached Images


-----------------------------------

  • Core 2 Duo E8400 3ghz
  • 756mb Nvidia 9600GSO 256bit
  • 6gb Kingston RAM 800mz DDR2
  • Windows XP Service Pack 3 32-bit

This user is offline
