Fri, Apr 25, 2008 at 10:29:14 AM | Dimensioning Curved Walls

#1

clinard


active

Joined: Wed, Mar 26, 2008
11 Posts
No Rating

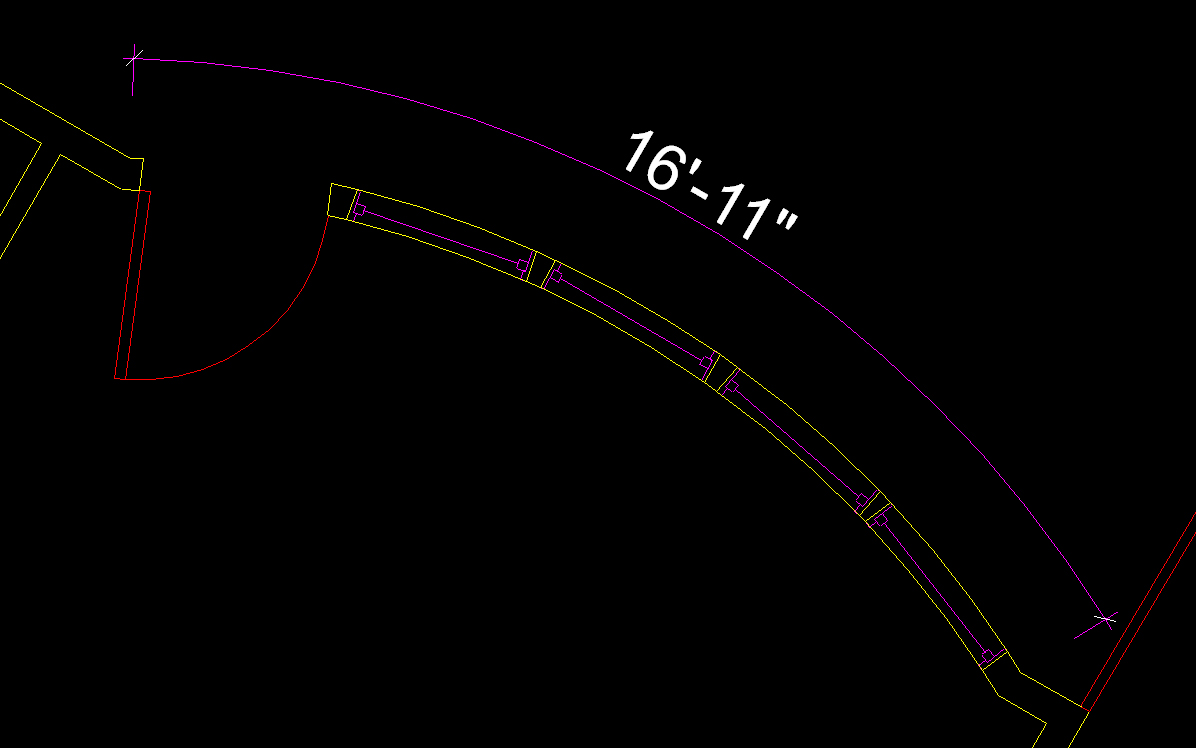

See attached image. How do I get Revit to do this??

Attached Images


This user is offline



Thu, May 1, 2008 at 1:57:09 PM | Dimensioning Curved Walls

#2

LIZARD2806


active

Joined: Fri, May 5, 2006
262 Posts
3.5 Stars: 7 Votes


Select Dimension from the Design Bar, then on the Options Bar, select the Arc Length button (should be the last button before the word "Prefer:" ).  Now select the wall arc you want to measure, then the from point, to point and finally the location of the dimension.  NOTE:  you may have to use the TAB key to cycle through to the point you want to pick



Edited on: Thu, May 1, 2008 at 1:58:03 PM

Attached Images


-----------------------------------

**Using Revit Architecture 2009, 2011, and 2012**
