Forums >> Revit Building >> Technical Support >> Metal roof - Sloped glazing problems on egdes

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Mar 5, 2008 at 10:10:52 AM | Metal roof - Sloped glazing problems on egdes

#1

gheidt


active

Joined: Tue, Feb 12, 2008
8 Posts
No Rating


I don't know if this has been covered or not.  I have created a metal roof using sloped glasing a grid layouts and profiles of the metal roof.

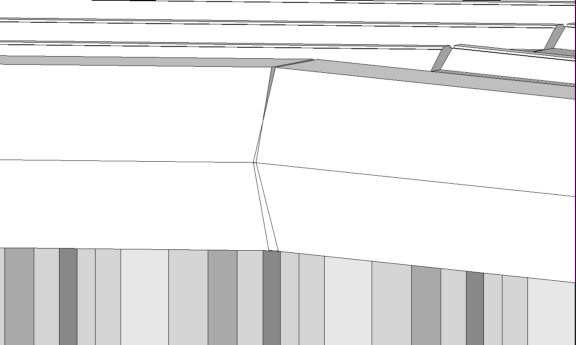

Now when I get to the edges I created an edge profile.  First, the left side was created fine but the right side was created rotated into the wall 180 degrees so the back was facing outside.  I had to create a new profile just by mirroring it and editing the edge mullion individually.  Now is there any way to miter the ends.  I tried doing roof fascia but it only works on the gable ends and not the eave ends.



Attached Images


This user is offline



Wed, Mar 5, 2008 at 2:28:37 PM | Metal roof - Sloped glazing problems on egdes

#2

gheidt


active

Joined: Tue, Feb 12, 2008
8 Posts
No Rating

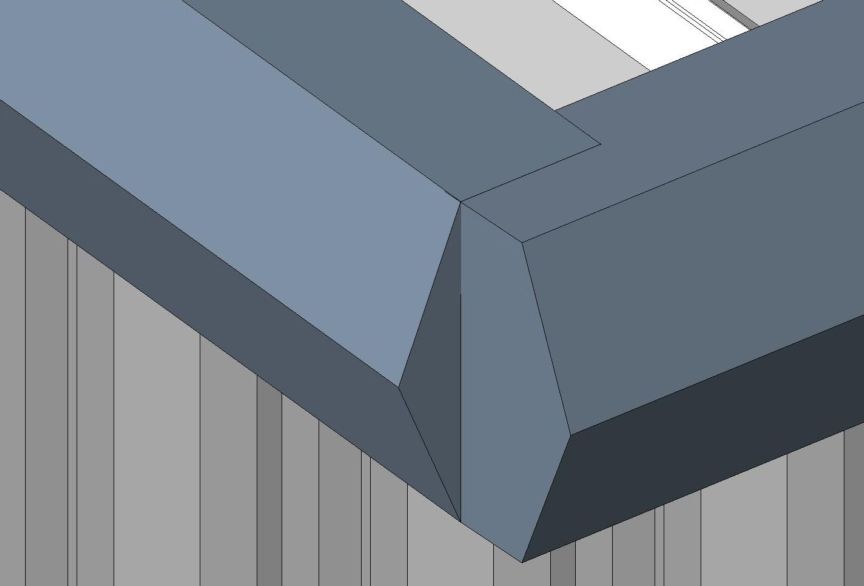

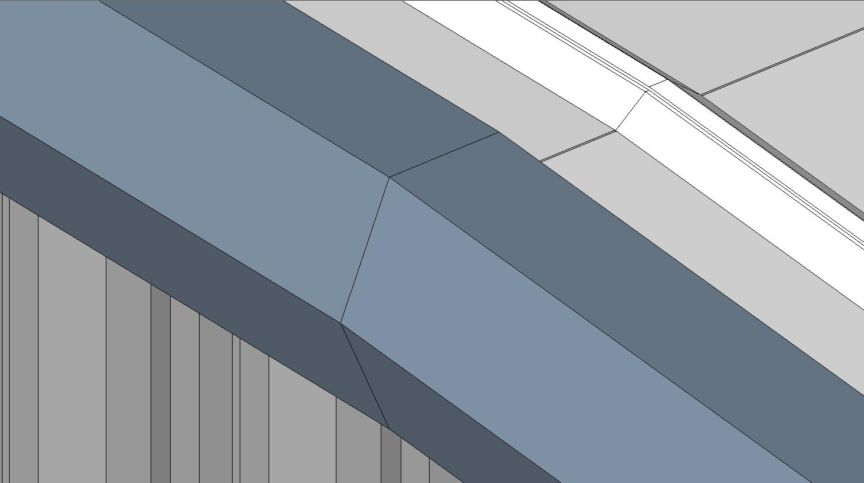

the fascia sweep works for the peak but I am still having difficulty attaching a fascia to the eave sides. on the one picture I was only able to add the fascia but it attaches to a plane on the gable fascia and it doesn't clean up.



:confused:







Attached Images


This user is offline
