Forums >> Revit Building >> Technical Support >> Curved wall in plan and elevation

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Mar 3, 2008 at 5:50:19 PM | Curved wall in plan and elevation

#1

sarawahle


active

Joined: Fri, Apr 20, 2007
2 Posts
No Rating


Can someone tell me how to make a wall that is curved in plan and in elevation?

This user is offline



Thu, Mar 6, 2008 at 12:13:43 PM | Curved wall in plan and elevation

#2

LIZARD2806


active

Joined: Fri, May 5, 2006
262 Posts
3.5 Stars: 7 Votes


THis one was an easy one to find in the help file in Revit by searching for curved wall.  But, since I am writing anyway, you can do one of two things:

1.  Once in the WALL command, select one of the curve options on the options bar

2.  Draw a curved line and select it after choosing the "pick lines" tool (white arrow) on the options bar.



I find the latter helpful for more complicated curved walls with specific geometry.



hth.


-----------------------------------

**Using Revit Architecture 2009, 2011, and 2012**

This user is offline



Mon, Mar 10, 2008 at 6:36:34 PM | Curved wall in plan and elevation

#3

sarawahle


active

Joined: Fri, Apr 20, 2007
2 Posts
No Rating


I know how to make the curved wall but in elevation it has a gothic arch on top.  Does anyone know how to make this shape on a curved wall?


This user is offline



Mon, Mar 10, 2008 at 6:51:39 PM | Curved wall in plan and elevation

#4

LIZARD2806


active

Joined: Fri, May 5, 2006
262 Posts
3.5 Stars: 7 Votes


Option 1.  If it is under a roof in the shape you want, simply attach it to the roof.

Option 2.  If no roof is above, select the wall in elevation view, then click the edit profile button on the options bar.  the outline of the wall turns to magenta lines.  you can add and delet them at will, but I would recommend only enough customization as necessary.  Also, you'll need to double check the geometry if you stretch the wall after you edit the profile as it will effect it.



hth


-----------------------------------

**Using Revit Architecture 2009, 2011, and 2012**

This user is offline



Tue, Mar 11, 2008 at 1:23:12 AM | Curved wall in plan and elevation

#5

hisdirt


active

Joined: Sun, Nov 6, 2005
123 Posts
5 Stars: 5 Votes


Im not sure you can edit the profile of a curved wall...



But other options would include making an in-place family consisting of a void to cut the wall, else massing to free model the shape you want and apply your wall to the face.



Hope this helps!


This user is offline

View Website

Tue, Mar 11, 2008 at 7:38:20 AM | Curved wall in plan and elevation

#6

LIZARD2806


active

Joined: Fri, May 5, 2006
262 Posts
3.5 Stars: 7 Votes


You are correct, you can not edit the profile of a curved wall.  The in-place family or a roof would be your best bet.

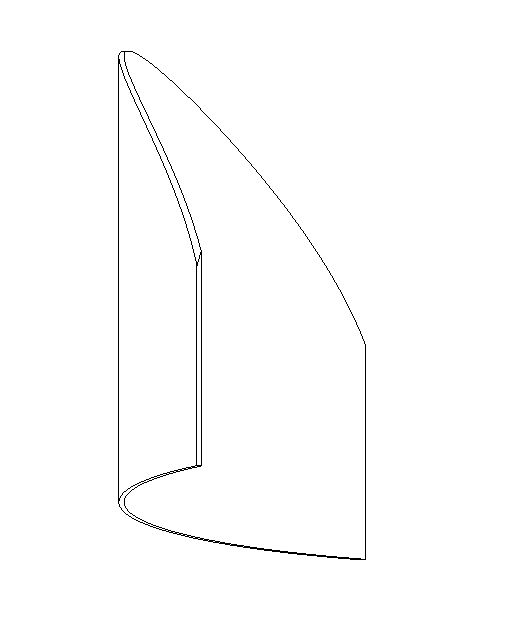

Attached Images


-----------------------------------

**Using Revit Architecture 2009, 2011, and 2012**
