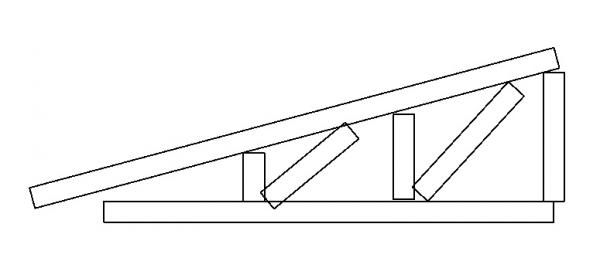

pitch adaptable Half (3) 6 Panel truss for monopitch roofs

Adjust top chord to required needs and apply coping for the finishing touches.

ensure open end is located on defined pitch boundary line.

Whilst it may not be absolutely perfect for basic drawing purposes saves time by not having to create an one off truss for a project.

Product Version: Revit Architecture 2015

Uploaded By: bfrancis1982
Uploaded On: Tue, Nov 29, 2016
Original Creator: Rebecca Francis
