Parametric Grating with U-Beams
3834 Downloads
|
 |
| |

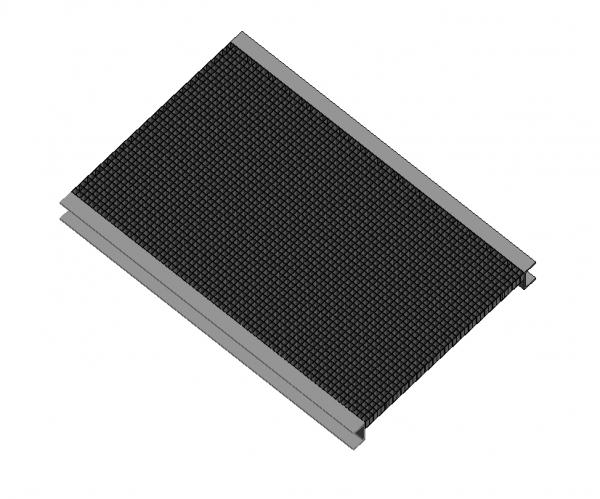

Parametric Grating with U-Beams on two sides
Parameter:
Length
Width
Grid width
Grid heigth
Grid thickness
Material
U-Beam heigth
U-Beam thickness
U-Beam width
Visibility for each beam
Material
Parameter in german
:edit:
I'm sorry. I have fix some settings to avoid crossing lines in planview. But I can not replace the rfa File in RevitCity.
If this is important for you please send me a message.
I think in this Version there is an error with one grid slat on the side. Edit the family and delete it. To see the wrong slat you must decrease the grid height. Sorry for it, but it is stupid that we can not manage our own files in RevitCity. If someone have trouble please send me a message. |
|
CSI Division: 05 53 00 Metal Gratings
RevitCity Division: Structural > Framing > Steel
Product Version: Revit Architecture 2015 |
Uploaded By: Leohart
Uploaded On: Wed, Jul 1, 2015
Original Creator: Leo Hart
|
|
Comments
|
Tue, Apr 25, 2017 at 3:02:07 PM
#1
|
|
active
Joined Thu, Apr 20, 2017
No rating This user is offline |
Why is this what comes up when you seach "stupid"????
|
|
|
Thu, Aug 16, 2018 at 12:58:32 AM
#2
|
|
active
Joined Sat, Aug 11, 2018
No rating This user is offline |
can u please send me variable message sign board for traffic signages purpose
|
|
|
Thu, Feb 21, 2019 at 6:39:44 AM
#3
|
|
active
Joined Mon, May 29, 2017
No rating This user is offline |
When I insert this into a project, one of the U-beams disappears.
|
|
|
